Individual hose record

237-3227 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Attachments

Finished length1,350 mm

Locate this hose

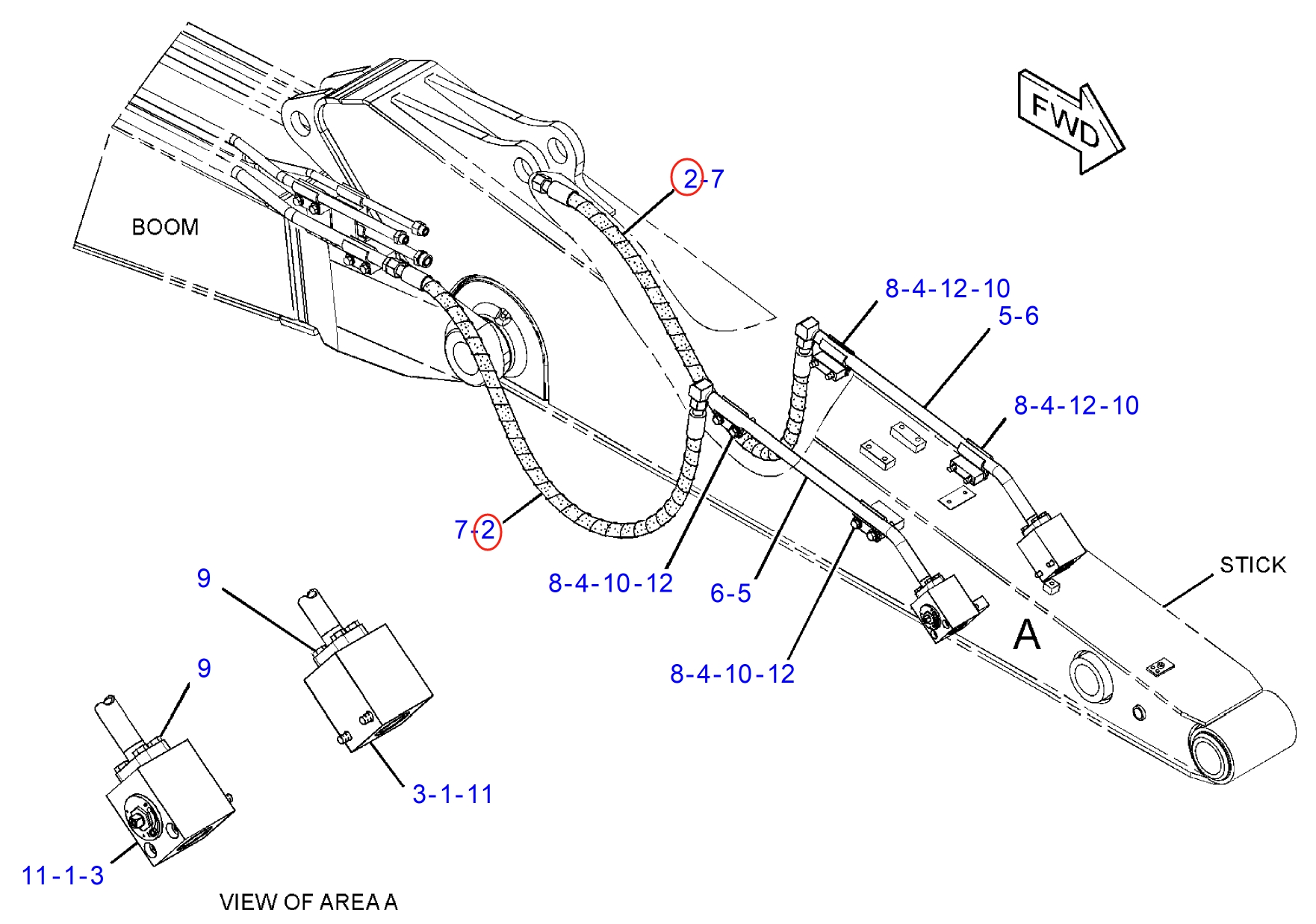

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 237-3227 before removing the hose.

Caterpillar CAT®311F LRR installation diagram showing hydraulic hose 237-3227 at Pipe No. 2 — **Caterpillar CAT®311F LRR**Part 237-3227 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 237-3227
Diagram pipe number: 2
Installation route: 大臂(附加装置)~小臂(附加装置)
Hose specification: DN19;6SH-12;42Mpa
Finished length: 1,350 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 2

4I-1037

Installation route: 手柄(推土铲)~控制阀(回转马达左)

Length: 1,400 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

266-1302

Installation route: 踏板(附加装置)~分配阀上

Length: 3,300 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

424-3208

Installation route: 控制阀(推土铲)~回转接头

Length: 550 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

302-9509

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,330 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

4I-6136

Installation route: 大臂(附加装置)~电磁阀(回转马达右)

Length: 1,500 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

282-5755

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,650 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

143-4254

Installation route: 梭阀(分配阀下)~

Length: 1,160 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

184-9155

Installation route: 踏板(附加装置)~电磁阀(回转接头左)

Length: 1,220 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
