Individual hose record
5I-3142 Hose Repair Specifications
Excavator · Caterpillar · CAT®315B · Control Valve
Finished length1,300 mm
Locate this hose

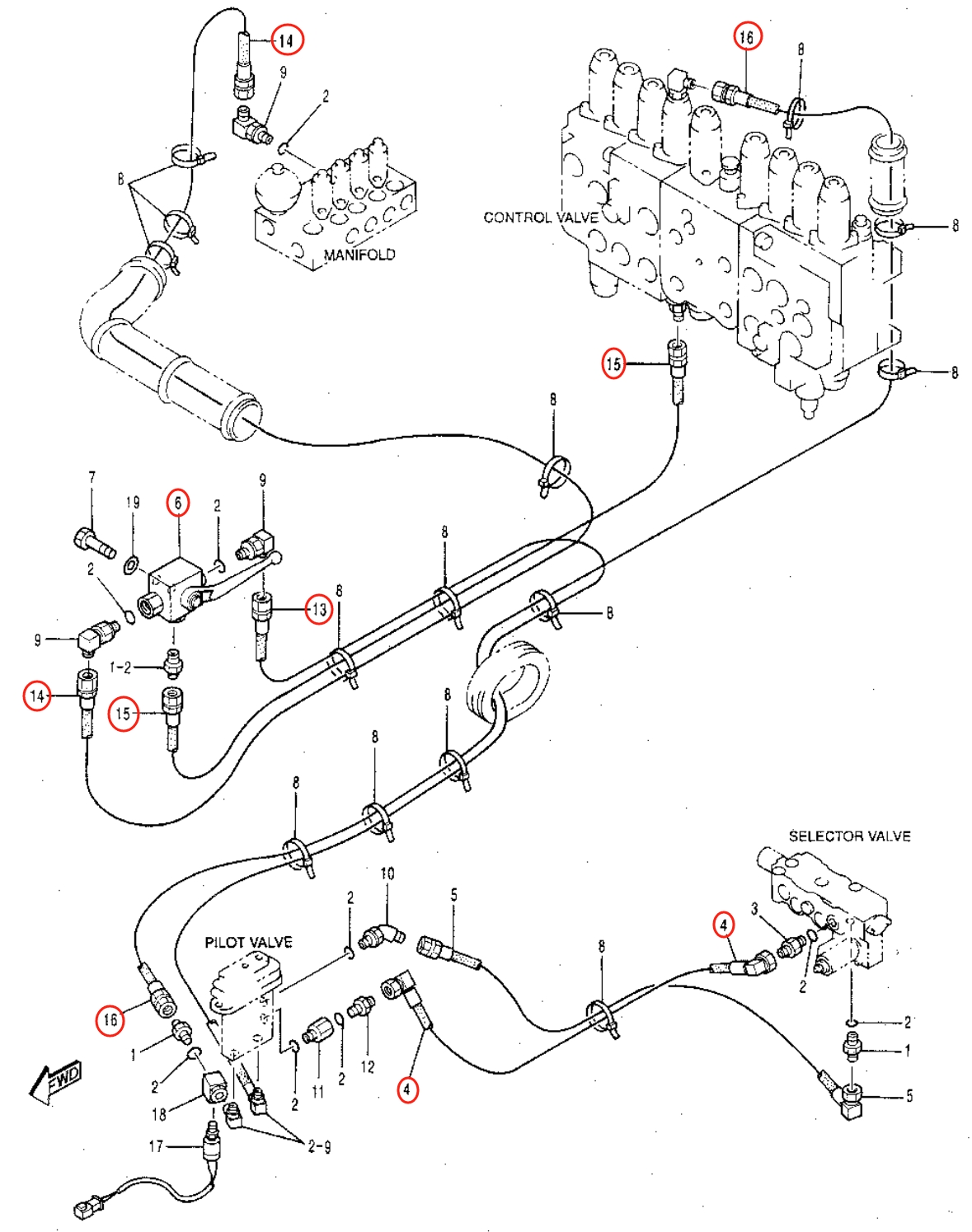

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 5I-3142 before removing the hose.
Repair specifications
- Part number
- 5I-3142
- Diagram pipe number
- 15
- Installation route
- 分配阀下~手动阀(分配阀前)
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 1,300 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,700 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,188 mm
- Specification
- DN25;1SN-16;7Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 2,330 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 2,360 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,250 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 883 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 2,000 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
