Individual hose record
4I-8897 Hose Repair Specifications
Excavator · Caterpillar · CAT®315B · Control Valve
Finished length883 mm
Locate this hose

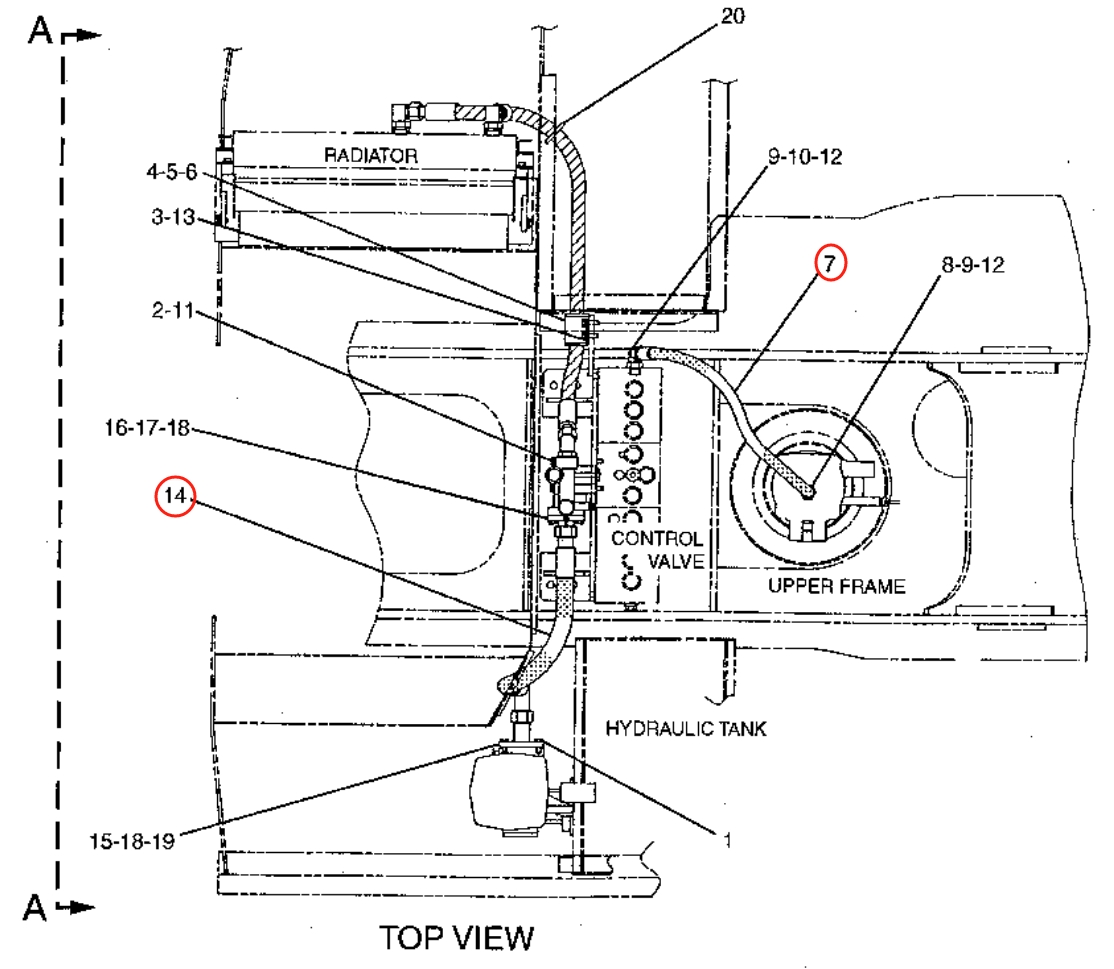

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4I-8897 before removing the hose.
Repair specifications
- Part number
- 4I-8897
- Diagram pipe number
- 7
- Installation route
- 分配阀~回转马达(回油)
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 883 mm
- Working pressure
- 8.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
