Individual hose record
142-1101 Hose Repair Specifications
Excavator · Caterpillar · CAT®315B · Control Valve
Finished length1,188 mm
Locate this hose

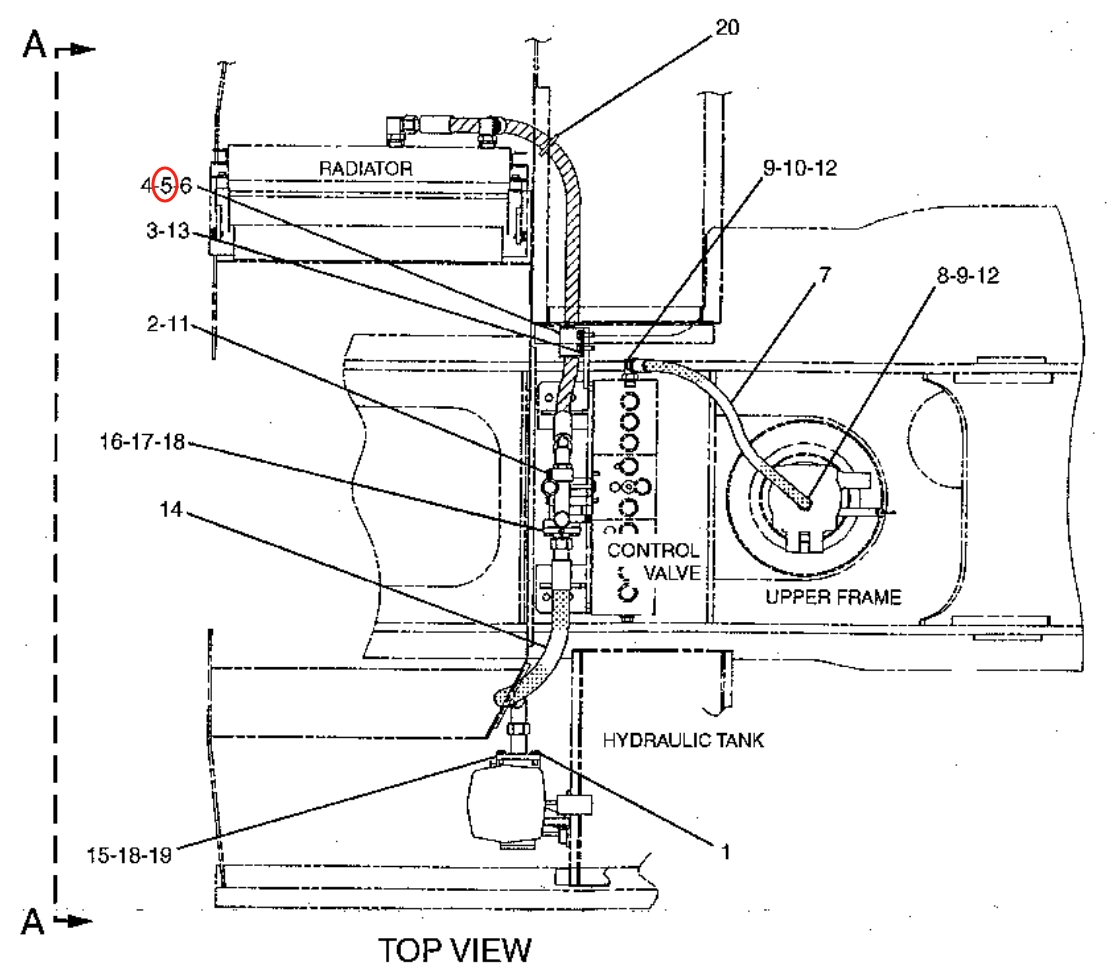

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 142-1101 before removing the hose.
Repair specifications
- Part number
- 142-1101
- Diagram pipe number
- 5
- Installation route
- 分配阀后~液压油散热器
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 1,188 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
