Individual hose record

5I-3124 Hose Repair Specifications

Excavator · Caterpillar · CAT®315-A L · Hydraulic Pump

Finished length700 mm

Locate this hose

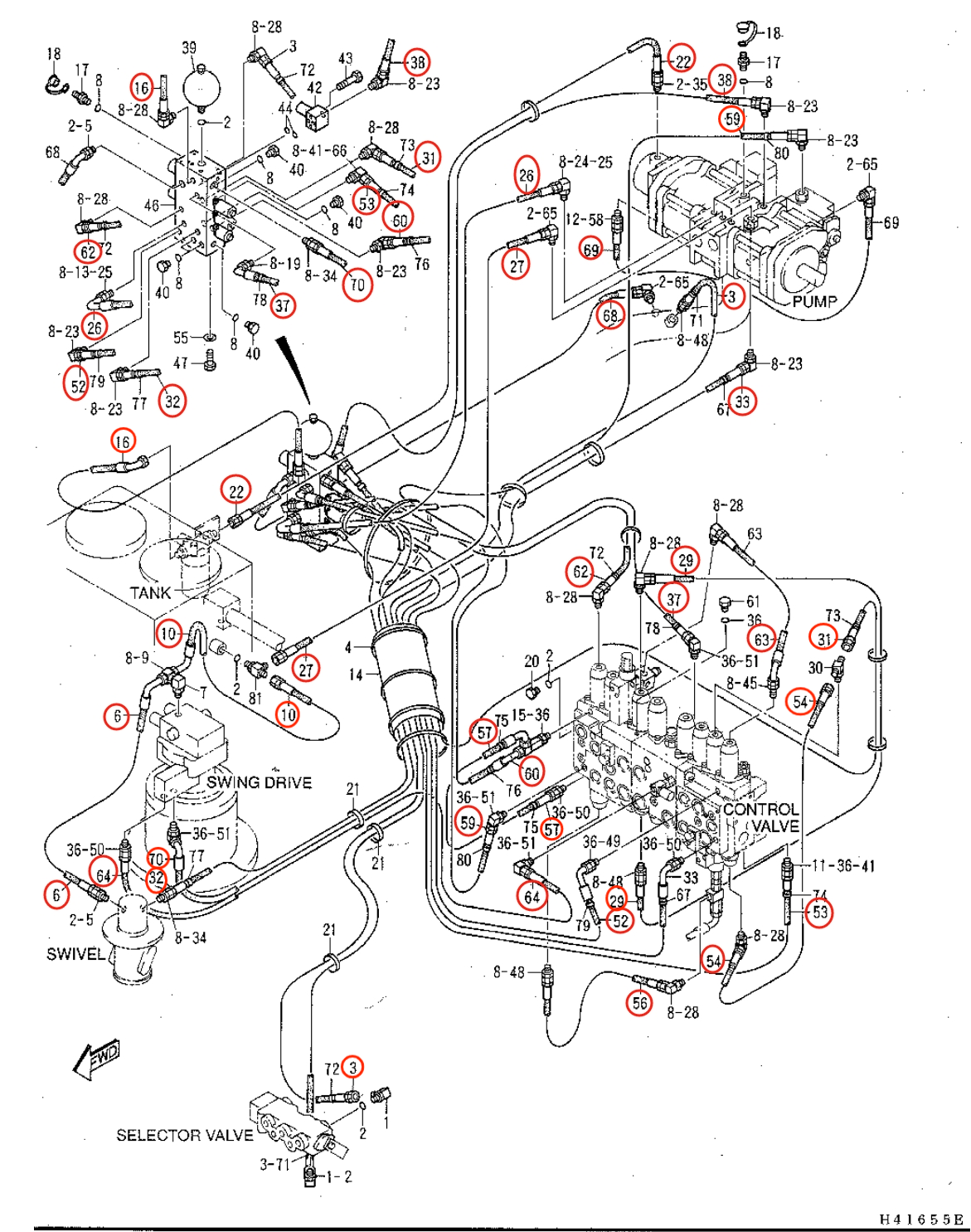

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 5I-3124 before removing the hose.

Caterpillar CAT®315-A L installation diagram showing hydraulic hose 5I-3124 at Pipe No. 22
Caterpillar CAT®315-A LPart 5I-3124 · Pipe No. 22Open full-size diagram

Repair specifications

Part number
5I-3124
Diagram pipe number
22
Installation route
液压泵上~液压油过滤器
Hose specification
DN10;-6;10.3Mpa
Finished length
700 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 3

107-1591

Installation route: 液压泵吸油铁管~进回油阀

Length
3,500 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 27

5I-3112

Installation route: 液压泵~液压油箱

Length
800 mm
Specification
DN13;-8;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 59

107-1609

Installation route: 液压泵上~分配阀前

Length
1,450 mm
Specification
DN6;-4;19.2Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 38

7I-0924

Installation route: 液压泵上~蓄能器电磁阀(液压油箱右后)

Length
500 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 14

4I-1077

Installation route: 液压泵~堵头(减震管)

Length
1,150 mm
Specification
DN19;4SP-12;35Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
