F072157 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1470G Wheeled Harvester

Total length2,700 mm

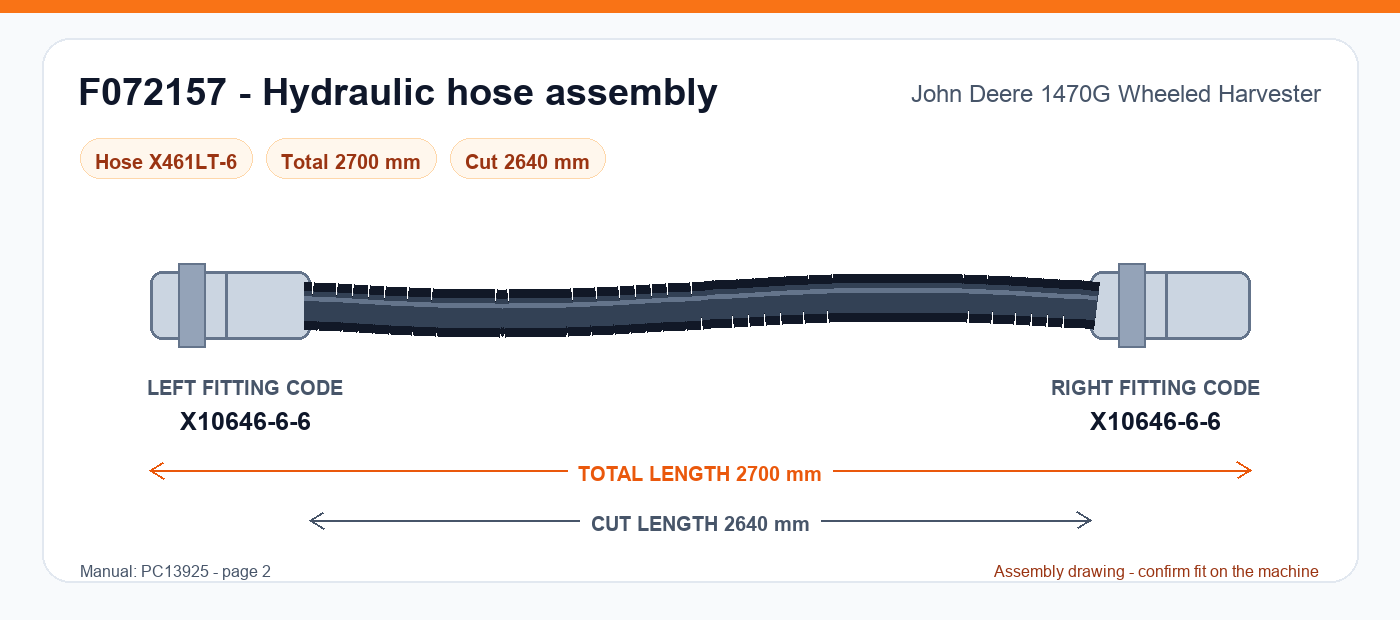

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

F072157 hydraulic hose assembly drawing for John Deere 1470G Wheeled Harvester - 2,700 mm total length, left fitting X10646-6-6, right fitting X10646-6-6 — F072157 - 2,700 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1470G Wheeled Harvester
Part number: F072157
Hose type: X461LT-6
Total length: 2,700 mm
Cut length: 2,640 mm
Left-end hydraulic fitting code: X10646-6-6Look up this code
Right-end hydraulic fitting code: X10646-6-6Look up this code
Manual reference: PC13925, page 2

Hose assembly details

Part number: F072157
Hose type: X461LT-6
Total length: 2,700 mm
Cut length: 2,640 mm
Left fitting code: X10646-6-6
Right fitting code: X10646-6-6
Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
Manual page: 2

Download manual

Same machine

More hoses for this machine

Manual page 2

F069280

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 2,500 mm
Cut length: 2,379 mm
Specification: X731-16
Left fitting: X1J773-16-16-SM
Right fitting: X1JS73-16-16-SM

View hose specifications

Manual page 3

F075735

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 2,050 mm
Cut length: 1,990 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 4

F686935

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 715 mm
Cut length: 565 mm
Specification: X731-16
Left fitting: X16F73-16-16-1P
Right fitting: X16N73-16-16-1P-SL100

View hose specifications

Manual page 4

F682989

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 2,300 mm
Cut length: 2,232 mm
Specification: X461LT-6
Left fitting: X10346-6-6
Right fitting: X13746-6-6-MC

View hose specifications

Manual page 2

F070210

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 350 mm
Cut length: 281 mm
Specification: X461LT-6
Left fitting: X13W46-8-6
Right fitting: X16846-8-6

View hose specifications

Manual page 2

F069885

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 2,500 mm
Cut length: 2,414 mm
Specification: X371LT-16
Left fitting: X1J770-16-16-SM
Right fitting: X1JC70-16-16-SM

View hose specifications

Manual page 1

F048984

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,300 mm
Cut length: 1,234 mm
Specification: X461LT-6
Left fitting: X16846-8-6
Right fitting: X16846-8-6

View hose specifications

Manual page 1

F047947

Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 450 mm
Cut length: 392 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X10646-6-6

View hose specifications

For reference only. Confirm the actual hose before fabrication.
