Individual hose record
108-7139 Hose Repair Specifications
Excavator · Caterpillar · CAT®318B · Control Valve
Finished length1,030 mm
Locate this hose

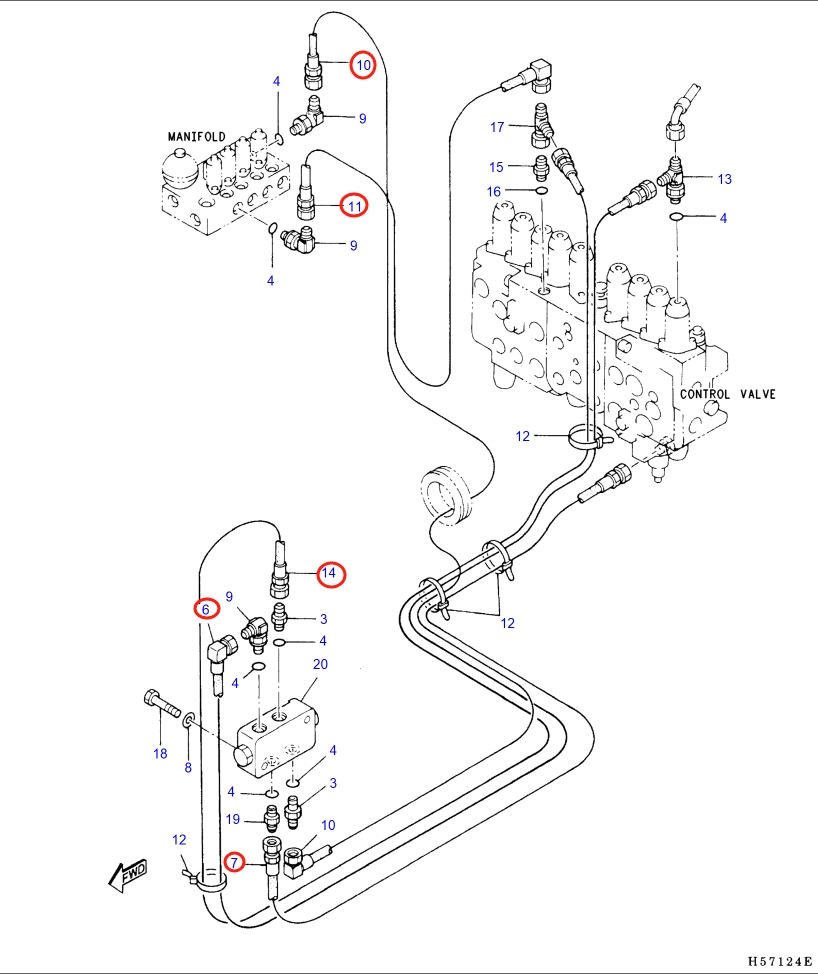

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 108-7139 before removing the hose.
Repair specifications
- Part number
- 108-7139
- Diagram pipe number
- 7
- Installation route
- 分配阀前~先导阀
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,030 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
