Individual hose record

178-5955 Hose Repair Specifications

Excavator · Caterpillar · CAT®313D · Hydraulic Pump

Finished length610 mm

Locate this hose

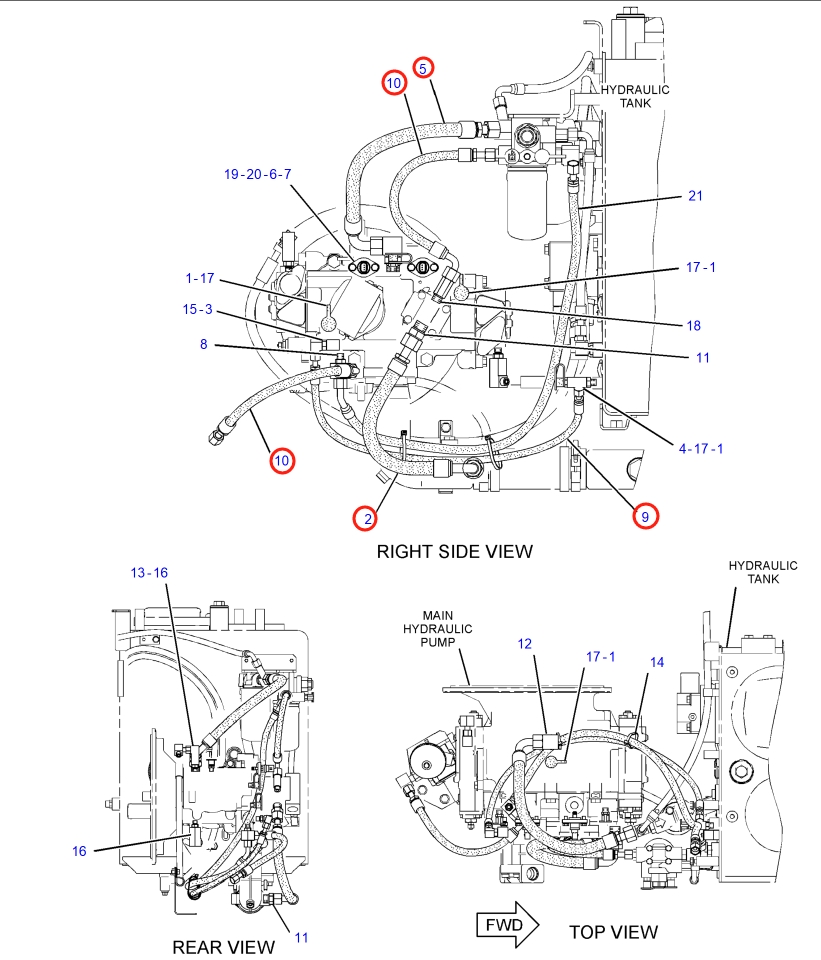

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 178-5955 before removing the hose.

Part number: 178-5955
Diagram pipe number: 5
Installation route: 液压泵~先导滤芯
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 610 mm
Working pressure: 8.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 9

Installation route: 液压泵~液压油箱

Length: 960 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 液压泵~液压油过滤器

Length: 610 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
