Individual hose record
223-6869 Hose Repair Specifications
Excavator · Caterpillar · CAT®318F · Boom Assembly
Finished length1,100 mm
Locate this hose

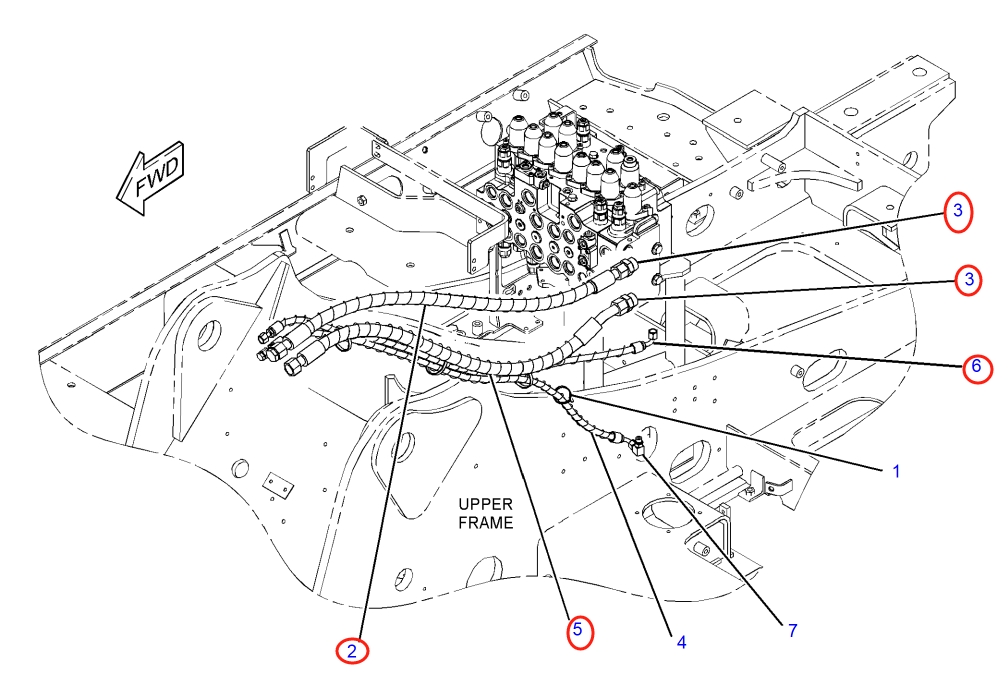

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 223-6869 before removing the hose.
Repair specifications
- Part number
- 223-6869
- Diagram pipe number
- 2
- Installation route
- 大臂(分节油缸)~分配阀
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 1,100 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
