Individual hose record

266-1210 Hose Repair Specifications

Excavator · Caterpillar · CAT®318F · Boom Assembly

Finished length850 mm

Locate this hose

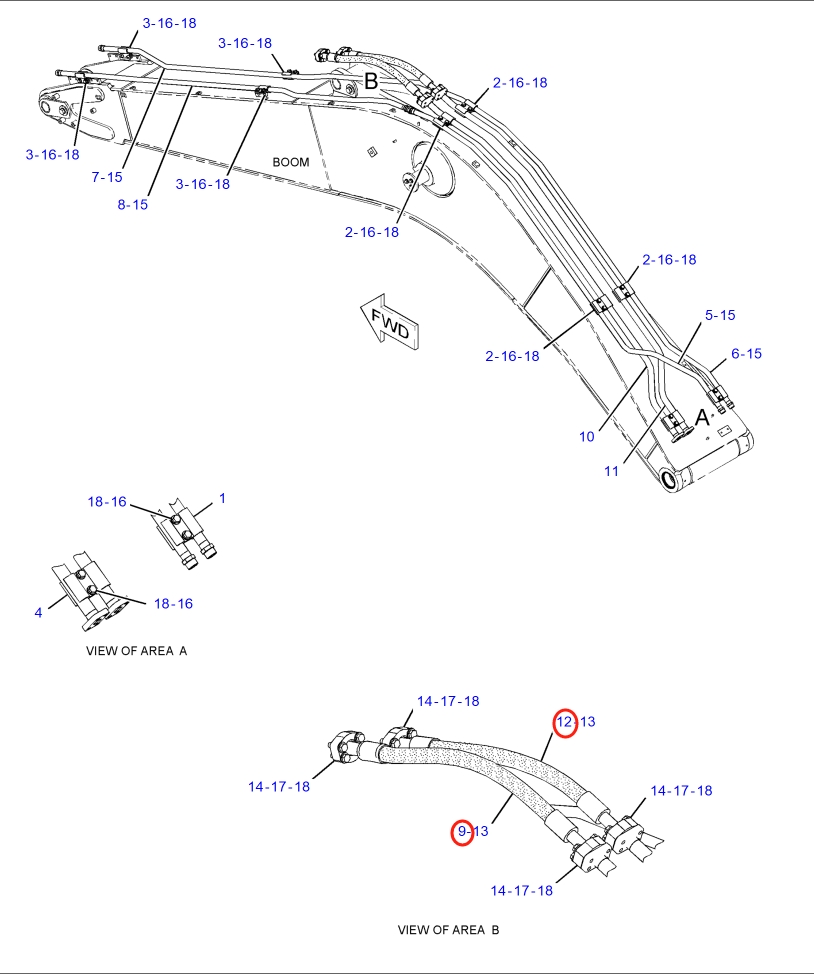

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 266-1210 before removing the hose.

Caterpillar CAT®318F installation diagram showing hydraulic hose 266-1210 at Pipe No. 9 — **Caterpillar CAT®318F**Part 266-1210 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 266-1210
Diagram pipe number: 9
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN25;6SH-16;42Mpa
Finished length: 850 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

223-6869

Installation route: 大臂(分节油缸)~分配阀

Length: 1,100 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

187-5954

Installation route: 大臂左4

Length: 1,150 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
