Individual hose record
187-5954 Hose Repair Specifications
Excavator · Caterpillar · CAT®318F · Boom Assembly
Finished length1,150 mm
Locate this hose

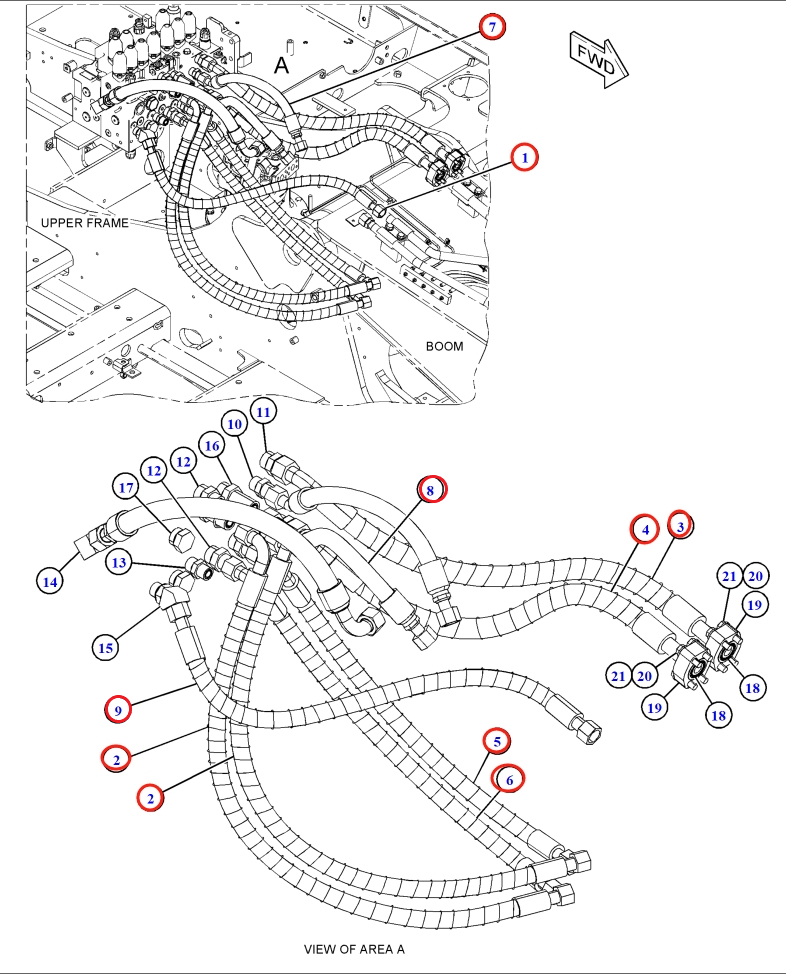

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 187-5954 before removing the hose.
Repair specifications
- Part number
- 187-5954
- Diagram pipe number
- 1
- Installation route
- 大臂左4
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 1,150 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 850 mm
- Specification
- DN25;6SH-16;42Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
For reference only. Confirm the actual hose before fabrication.
