Individual hose record

319-9976 Hose Repair Specifications

Excavator · Caterpillar · CAT®315F LCR · Control Lever

Finished length2,000 mm

Locate this hose

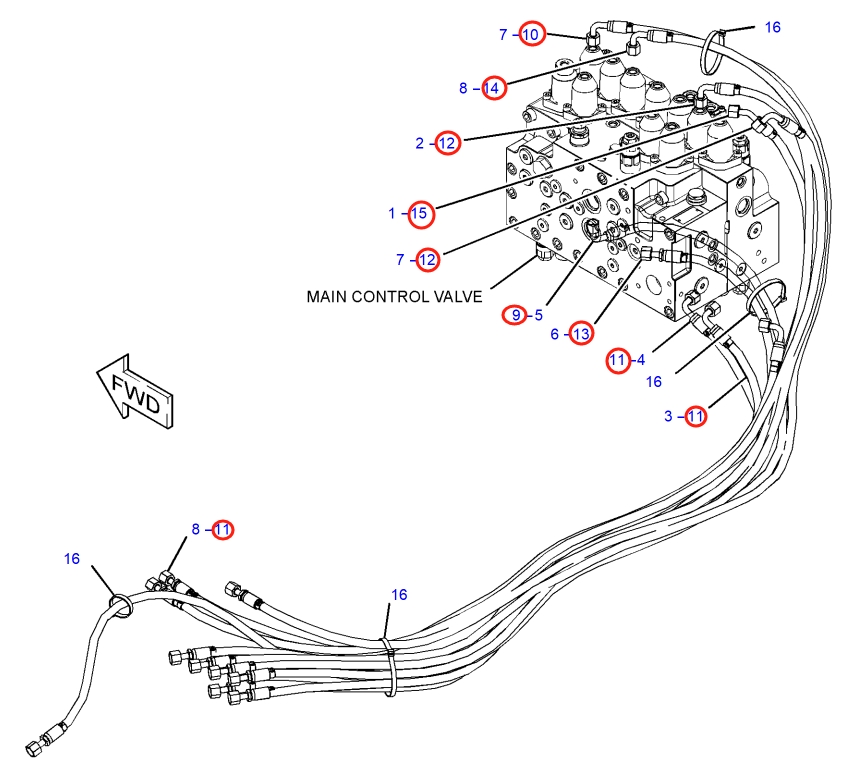

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 319-9976 before removing the hose.

Part number: 319-9976
Diagram pipe number: 13
Installation route: 中转接头~分配阀左
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,000 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 15

Installation route: 中转接头~模式转换阀(驾驶室)

Length: 270 mm
Specification: DN10;1SN-06;18MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 2,200 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
