Individual hose record
286-6399 Hose Repair Specifications
Excavator · Caterpillar · CAT®315F LCR · Control Lever
Finished length270 mm
Locate this hose

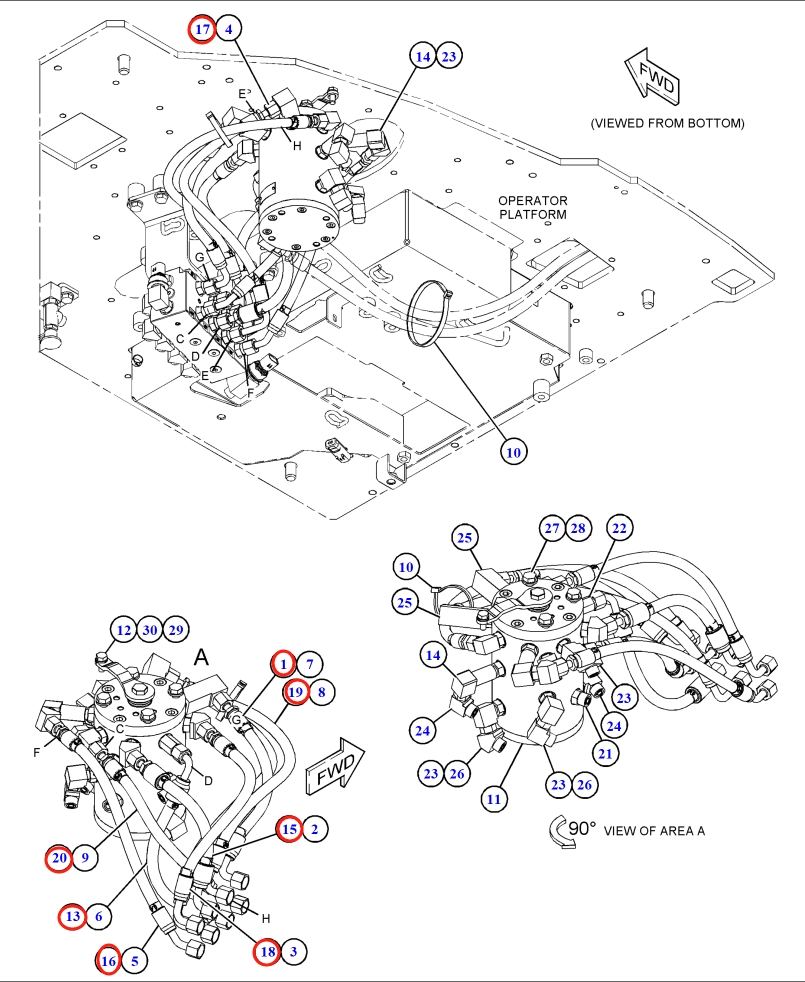

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 286-6399 before removing the hose.
Repair specifications
- Part number
- 286-6399
- Diagram pipe number
- 15
- Installation route
- 中转接头~模式转换阀(驾驶室)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 270 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 16
302-9635
Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀
- Length
- 2,200 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
