Individual hose record

302-9635 Hose Repair Specifications

Excavator · Caterpillar · CAT®315F LCR · Control Lever

Finished length2,200 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 302-9635 before removing the hose.

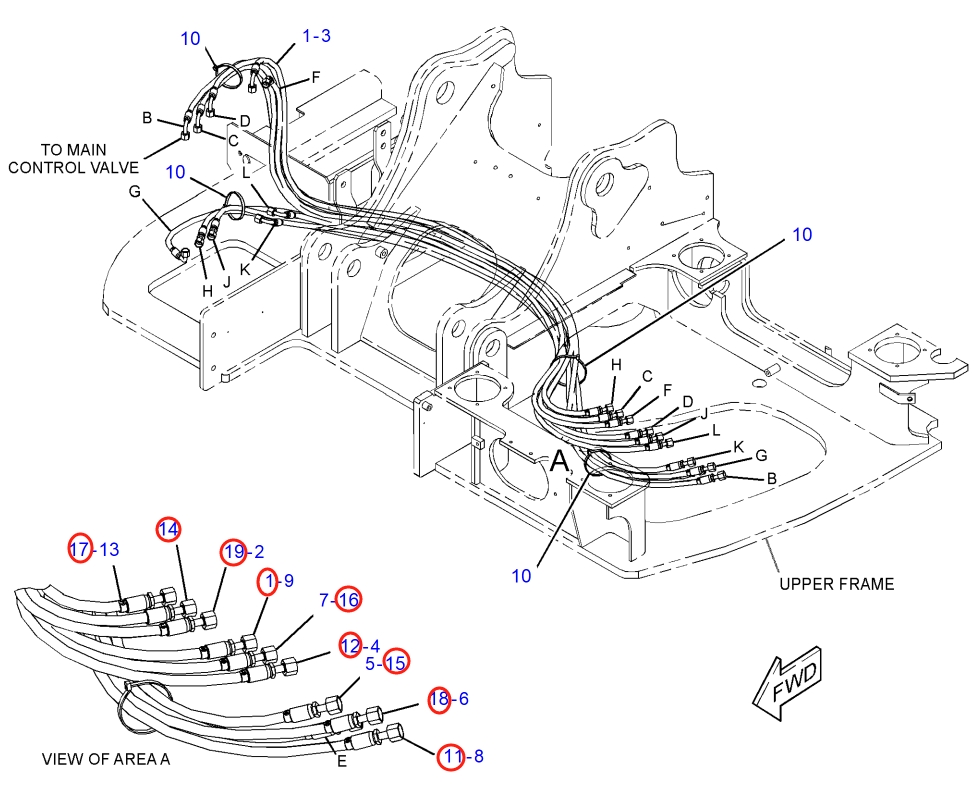

Caterpillar CAT®315F LCR installation diagram showing hydraulic hose 302-9635 at Pipe No. 16 — **Caterpillar CAT®315F LCR**Part 302-9635 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 302-9635
Diagram pipe number: 16
Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,200 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
