Individual hose record

8U-2679 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Attachments

Finished length708 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 8U-2679 before removing the hose.

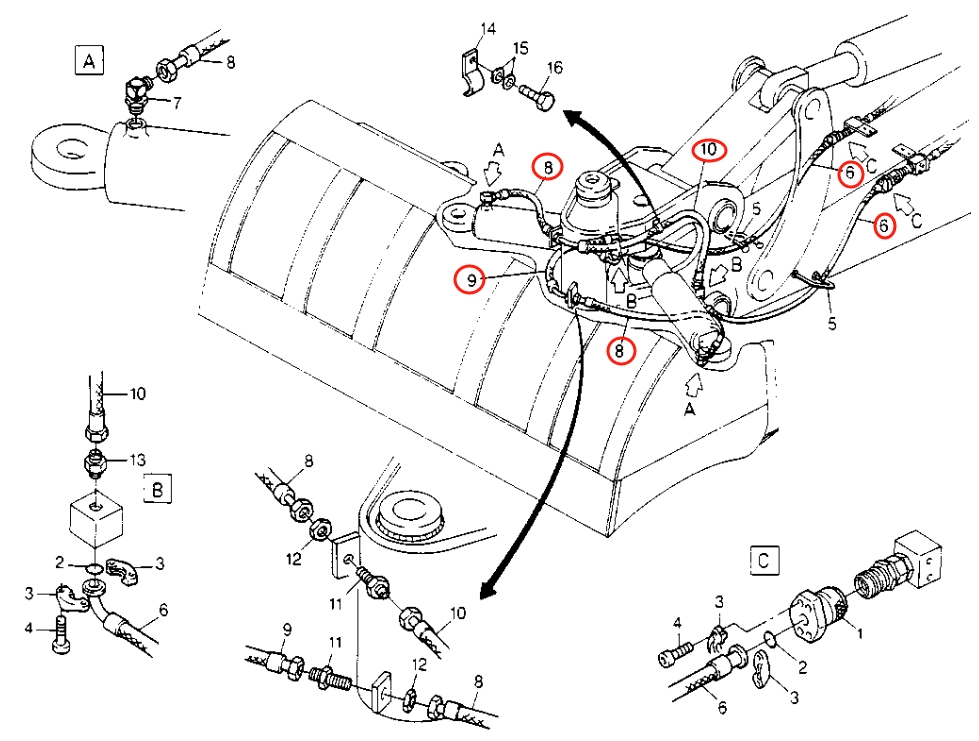

Caterpillar CAT®214B installation diagram showing hydraulic hose 8U-2679 at Pipe No. 8 — **Caterpillar CAT®214B**Part 8U-2679 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 8U-2679
Diagram pipe number: 8
Installation route: 铲斗倾斜油缸管路
Hose specification: DN10;6SH-6;42Mpa
Finished length: 708 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2
