Individual hose record

8U-1887 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Attachments

Finished length2,200 mm

Locate this hose

Installation diagram — Pipe No. 1

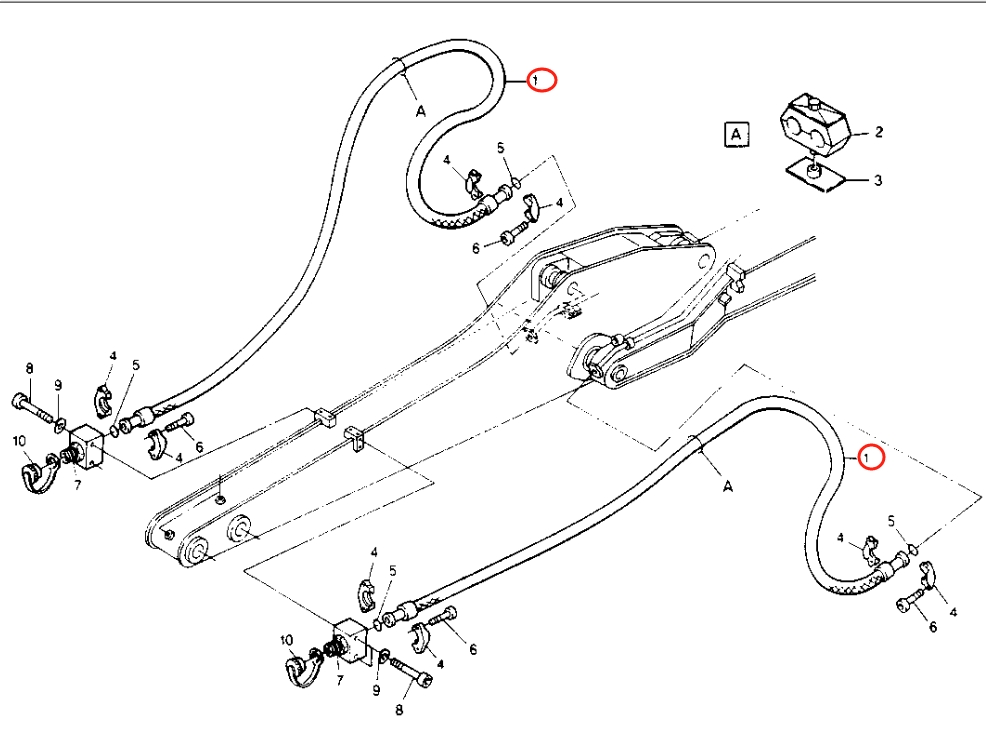

Locate Pipe No. 1 in the diagram, then confirm part number 8U-1887 before removing the hose.

Caterpillar CAT®214B installation diagram showing hydraulic hose 8U-1887 at Pipe No. 1 — **Caterpillar CAT®214B**Part 8U-1887 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 8U-1887
Diagram pipe number: 1
Installation route: 大臂铁管~快速断开连接器(小臂)
Hose specification: DN13;6SH-8;42Mpa
Finished length: 2,200 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 8

8U-2679

Installation route: 铲斗倾斜油缸管路

Length: 708 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-0682

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 1,350 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 13

8U-0886

Installation route: 过渡阀块(大臂后段上)~过渡阀块(大臂前段上)

Length: 6,750 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 6

8U-0109

Installation route: 过渡阀块(驾驶室)~过渡接头

Length: 1,386 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

8U-1625

Installation route: 左推土铲油缸~右推土铲油缸

Length: 842 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

8U-0260

Installation route: 转向泵~液压油箱

Length: 461 mm
Specification: DN19;2SN-12;21.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

8U-0109

Installation route: 转向泵~过渡接头(连接制动泵)

Length: 1,386 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

8U-1666

Installation route: 变速箱~后传动轴

Length: 726 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
