8U-0886 Hose Repair Specifications

Excavator · Caterpillar · CAT®214B · Attachments

Finished length6,750 mm

Locate this hose

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 8U-0886 before removing the hose.

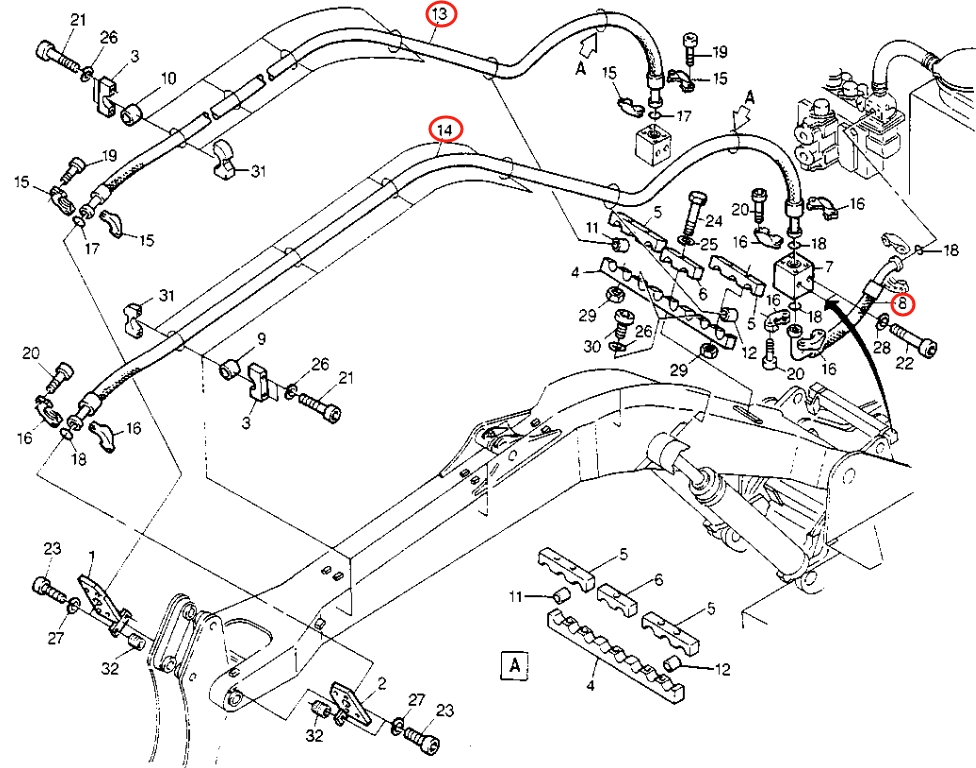

Caterpillar CAT®214B installation diagram showing hydraulic hose 8U-0886 at Pipe No. 13 — **Caterpillar CAT®214B**Part 8U-0886 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 8U-0886
Diagram pipe number: 13
Installation route: 过渡阀块(大臂后段上)~过渡阀块(大臂前段上)
Hose specification: DN25;4SP-16;28Mpa
Finished length: 6,750 mm
Working pressure: 28 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1
