Individual hose record
340-2962 Hose Repair Specifications
Excavator · Caterpillar · CAT®315F LCR · Swing Motor
Finished length1,860 mm
Locate this hose

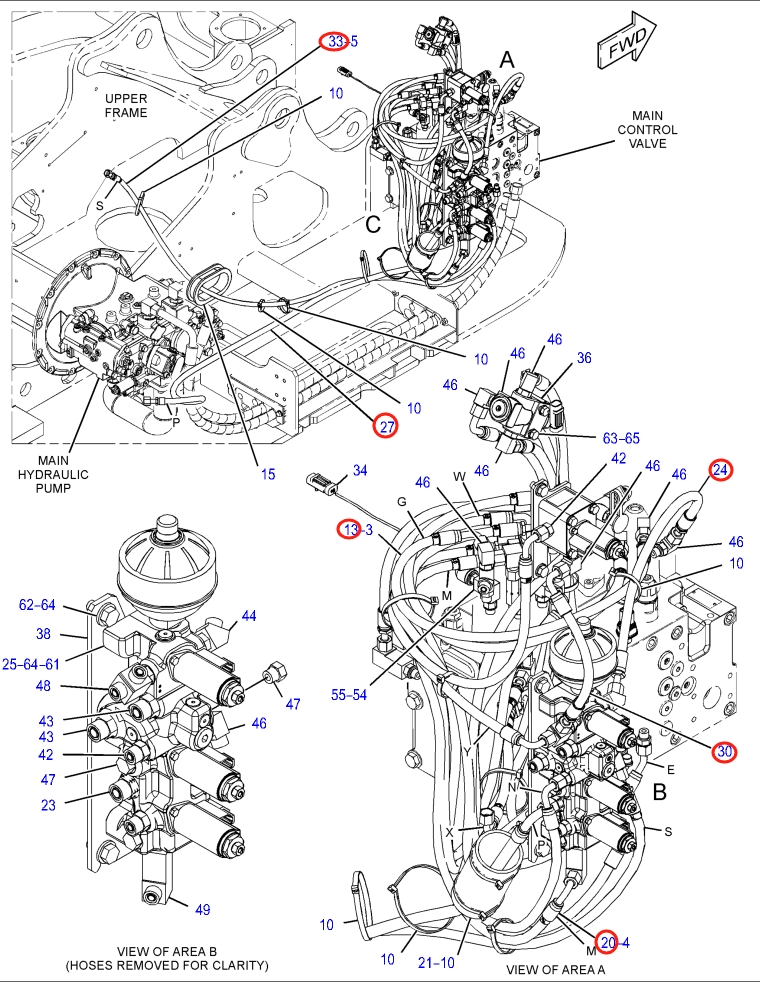

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 340-2962 before removing the hose.
Repair specifications
- Part number
- 340-2962
- Diagram pipe number
- 33
- Installation route
- 回转马达~蓄能器电磁阀
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,860 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
