Individual hose record
5C-5135 Hose Repair Specifications
Excavator · Caterpillar · CAT®219 · Attachments
Finished length5,500 mm
Locate this hose

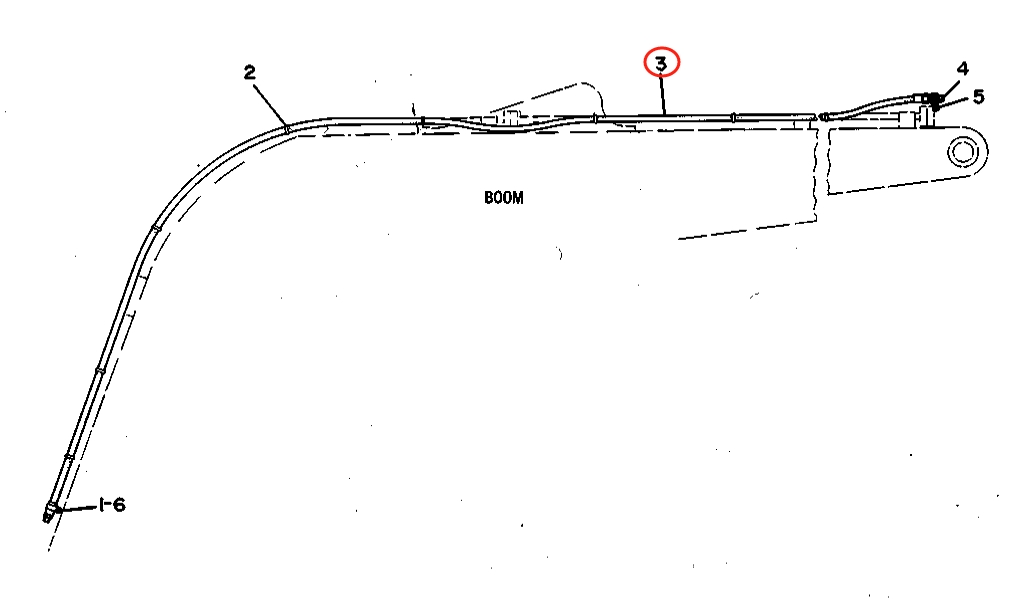

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 5C-5135 before removing the hose.
Repair specifications
- Part number
- 5C-5135
- Diagram pipe number
- 3
- Installation route
- 大臂附加装置管
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 5,500 mm
- Working pressure
- 8.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制外螺纹37°锥
- Quantity
- 2
