Individual hose record
5C-5136 Hose Repair Specifications
Excavator · Caterpillar · CAT®219 · Attachments
Finished length2,000 mm
Locate this hose

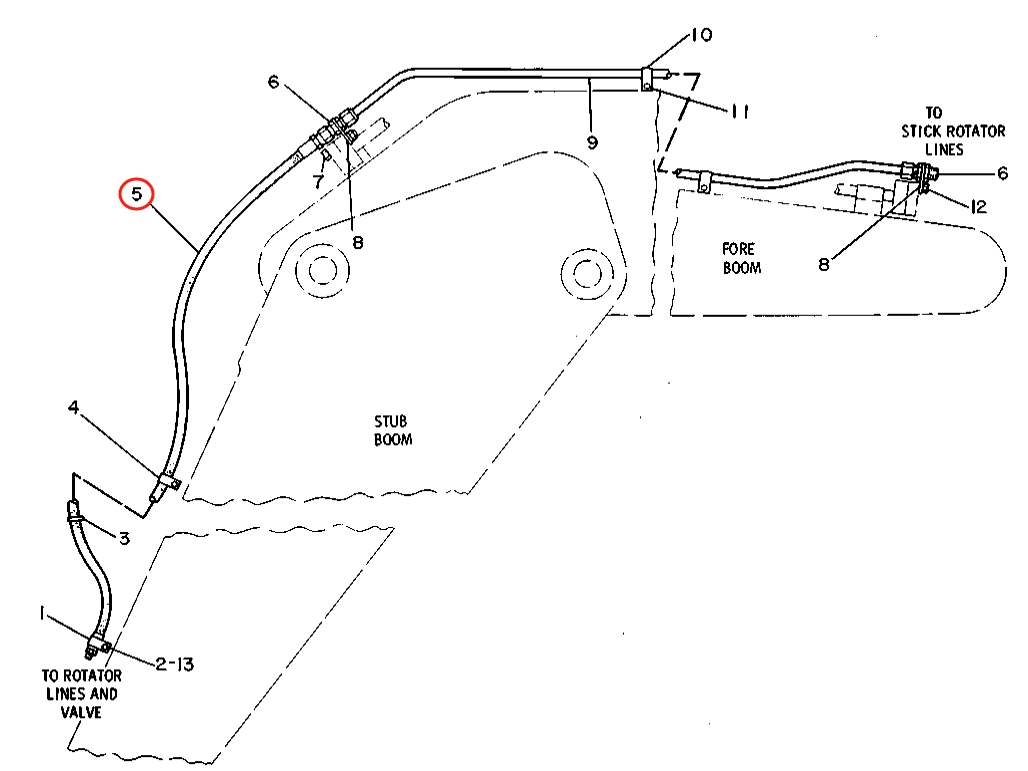

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 5C-5136 before removing the hose.
Repair specifications
- Part number
- 5C-5136
- Diagram pipe number
- 5
- Installation route
- 旋转器管路总成~
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 2,000 mm
- Working pressure
- 8.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制外螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 670 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 279 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,400 mm
- Specification
- DN19;4SP-12;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,180 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,320 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 5,460 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
