Diagram Pipe No. 7
123-5349
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,400 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
Individual hose record
7Y-2920 Hose Repair Specifications
Excavator · Caterpillar · CAT®316F L · Grease Lines
Finished length1,100 mm
Locate this hose

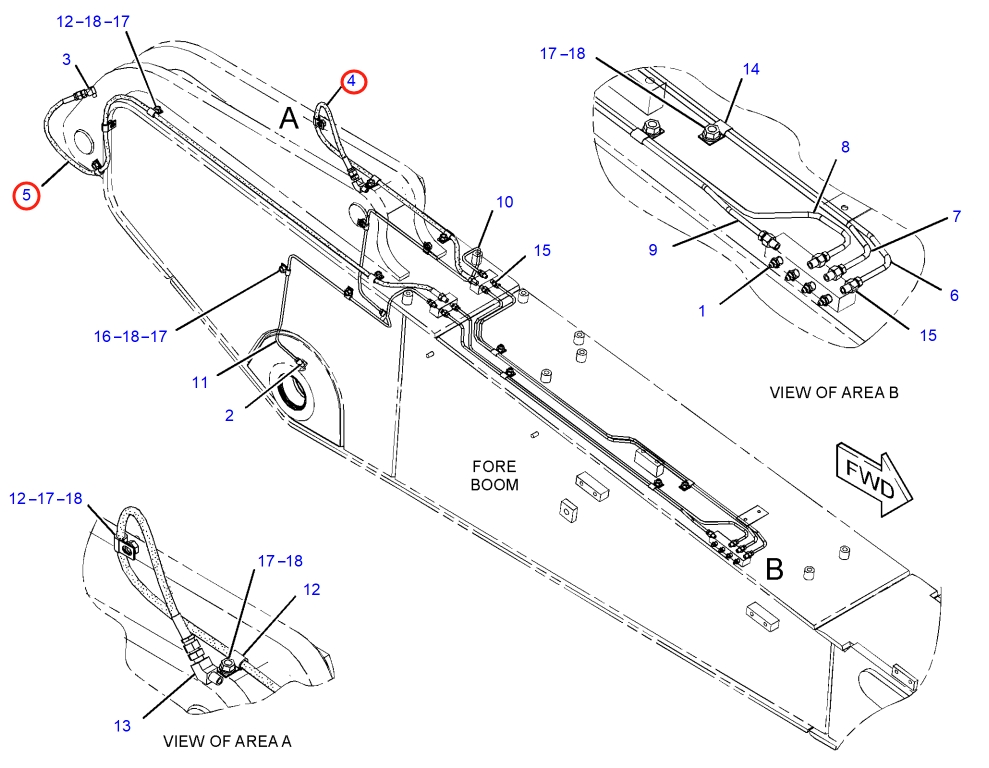

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 7Y-2920 before removing the hose.
Repair specifications
- Part number
- 7Y-2920
- Diagram pipe number
- 4
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;-4;19.2Mpa
- Finished length
- 1,100 mm
- Working pressure
- 19.2 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,340 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 1,900 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Length
- 650 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
Diagram Pipe No. 14
120-7225
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
- Length
- 2,300 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 3,050 mm
- Specification
- DN6;1SN-4;10.4Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
For reference only. Confirm the actual hose before fabrication.
