Individual hose record

109-7556 Hose Repair Specifications

Excavator · Caterpillar · CAT®318C · Control Valve

Finished length450 mm

Locate this hose

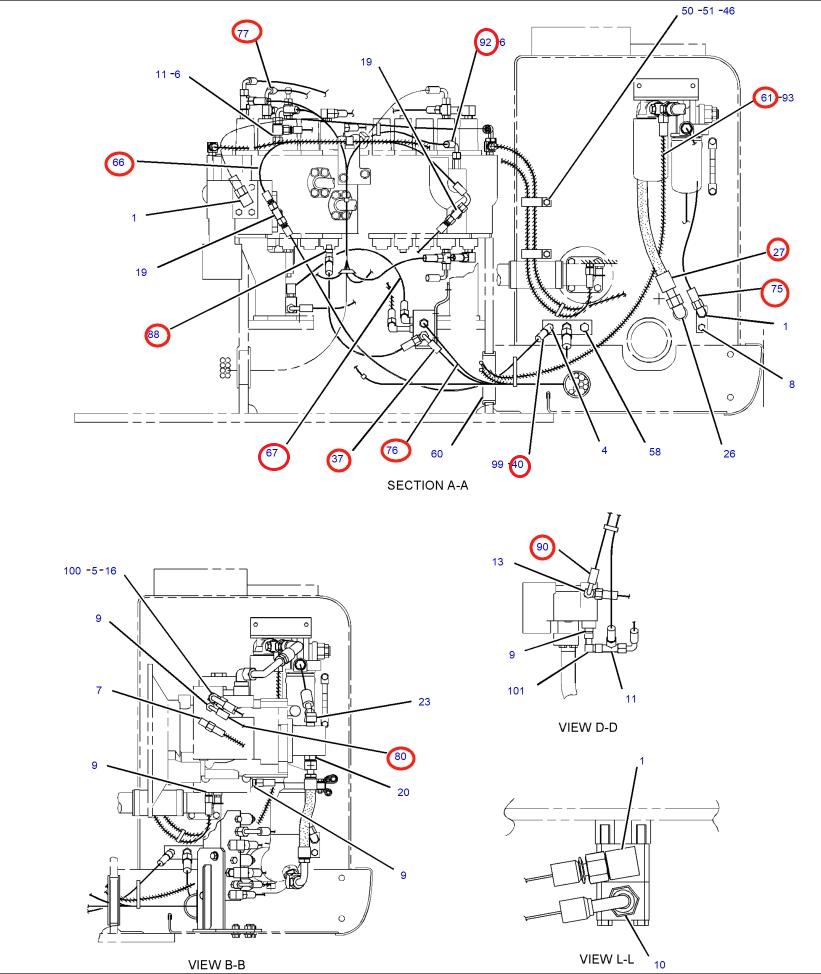

Installation diagram — Pipe No. 88

Locate Pipe No. 88 in the diagram, then confirm part number 109-7556 before removing the hose.

Caterpillar CAT®318C installation diagram showing hydraulic hose 109-7556 at Pipe No. 88 — **Caterpillar CAT®318C**Part 109-7556 · Pipe No. 88Open full-size diagram

Repair specifications

Part number: 109-7556
Diagram pipe number: 88
Installation route: 分配阀下~电磁阀(分配阀左下)
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 450 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

240-5730

Installation route: 分配阀上~蓄能器电磁阀

Length: 2,730 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-0815

Installation route: 分配阀下~

Length: 1,300 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

187-5707

Installation route: 分配阀上~

Length: 2,730 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

4I-3991

Installation route: 分配阀上~

Length: 2,100 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4I-3981

Installation route: 分配阀~电磁阀(液压泵下)

Length: 2,750 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 38

225-6721

Installation route: 分配阀上~

Length: 1,750 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

225-6721

Installation route: 分配阀~

Length: 1,750 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

4I-3994

Installation route: 分配阀上~

Length: 2,300 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
