Individual hose record

9G-4432 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Attachments

Finished length2,100 mm

Locate this hose

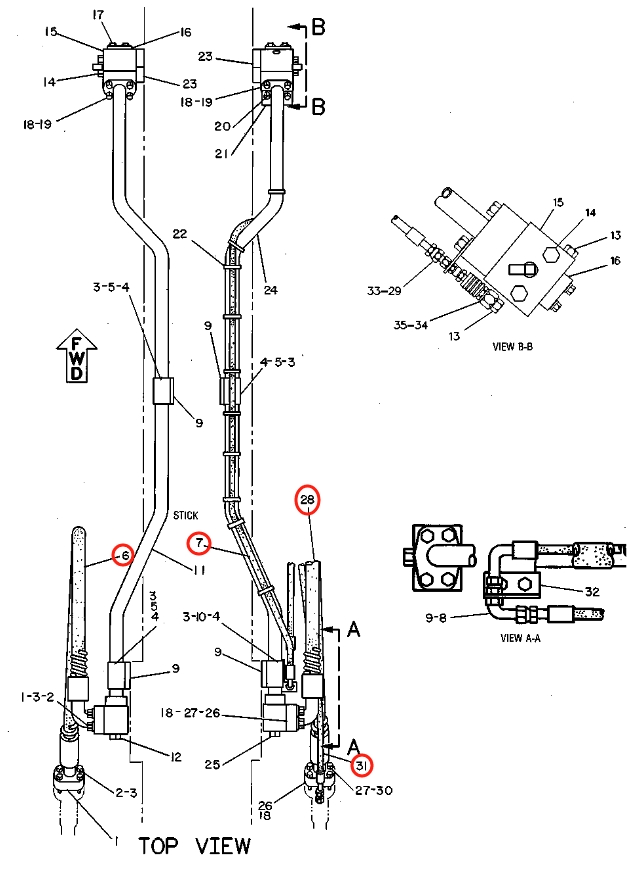

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 9G-4432 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 9G-4432 at Pipe No. 31
Caterpillar CAT®235CPart 9G-4432 · Pipe No. 31Open full-size diagram

Repair specifications

Part number
9G-4432
Diagram pipe number
31
Installation route
大臂(前段)~大臂(后段)
Hose specification
DN10;4SP-6;28Mpa
Finished length
2,100 mm
Working pressure
28 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 18

033-2159

Installation route: 单向阀(增压器)~控制阀(增压器)

Length
368 mm
Specification
DN13;1SN-8;14Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
