Individual hose record

033-2159 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Attachments

Finished length368 mm

Locate this hose

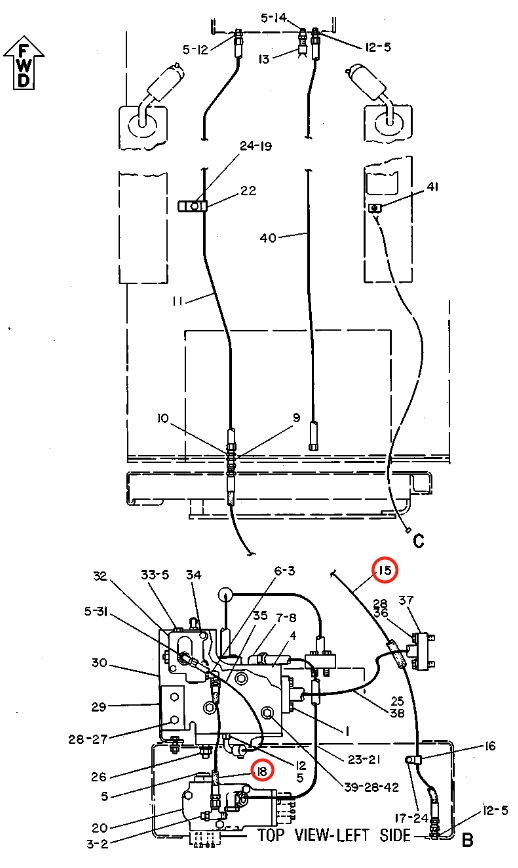

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 033-2159 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 033-2159 at Pipe No. 18
Caterpillar CAT®235CPart 033-2159 · Pipe No. 18Open full-size diagram

Repair specifications

Part number
033-2159
Diagram pipe number
18
Installation route
单向阀(增压器)~控制阀(增压器)
Hose specification
DN13;1SN-8;14Mpa
Finished length
368 mm
Working pressure
14 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 31

9G-4432

Installation route: 大臂(前段)~大臂(后段)

Length
2,100 mm
Specification
DN10;4SP-6;28Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
