3V-1330 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Attachments

Finished length686 mm

Locate this hose

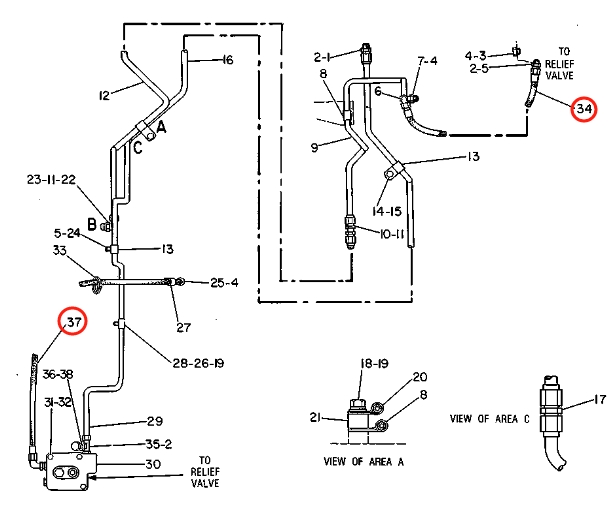

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 3V-1330 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 3V-1330 at Pipe No. 34 — Caterpillar CAT®235CPart 3V-1330 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 3V-1330
Diagram pipe number: 34
Installation route: 安全阀~铁管
Hose specification: DN8;-5;15.7Mpa
Finished length: 686 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 31

9G-4432

Installation route: 大臂(前段)~大臂(后段)

Length: 2,100 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 18

033-2159

Installation route: 单向阀(增压器)~控制阀(增压器)

Length: 368 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
