142-1040 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B L · Control Valve

Finished length1,388 mm

Locate this hose

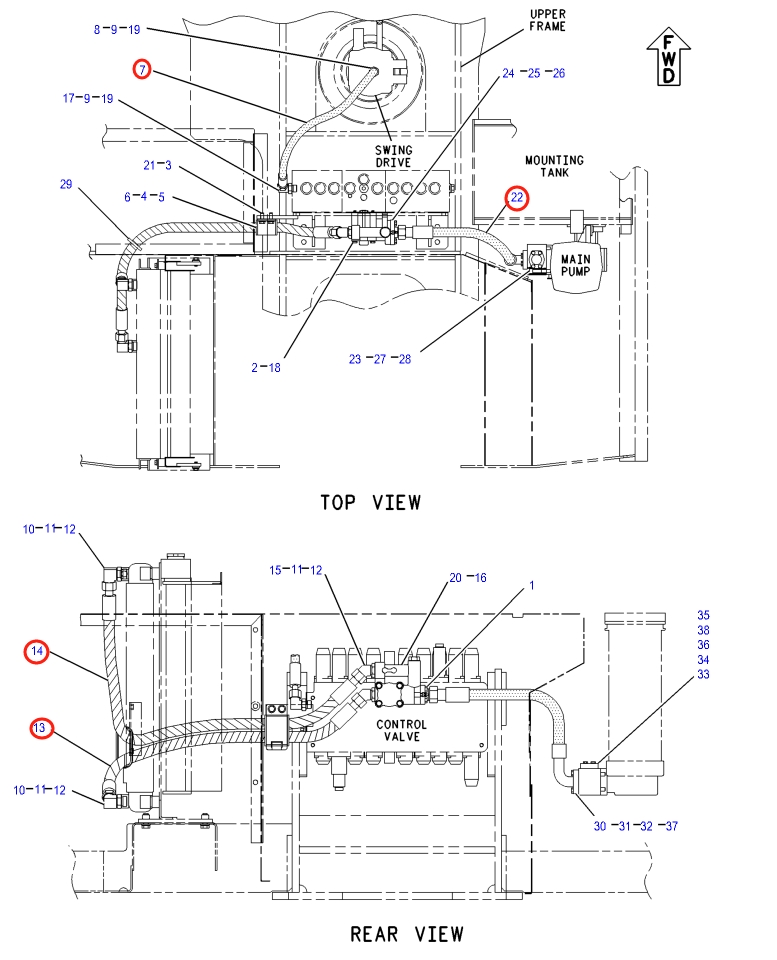

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 142-1040 before removing the hose.

Caterpillar CAT®317B L installation diagram showing hydraulic hose 142-1040 at Pipe No. 14
Caterpillar CAT®317B LPart 142-1040 · Pipe No. 14Open full-size diagram

Repair specifications

Part number
142-1040
Diagram pipe number
14
Installation route
分配阀~液压油散热器
Hose specification
DN25;1SN-16;7Mpa
Finished length
1,388 mm
Working pressure
7 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 7

4I-8897

Installation route: 分配阀~回转马达(回油)

Length
883 mm
Specification
DN19;1SN-12;8.7Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 8

4I-1452

Installation route: 分配阀上~梭阀(驾驶室)

Length
2,840 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
