- Length
- 2,350 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
Individual hose record
8U-6492 Hose Repair Specifications
Excavator · Caterpillar · CAT®206B · Attachments – Breaker
Finished length2,350 mm
Locate this hose

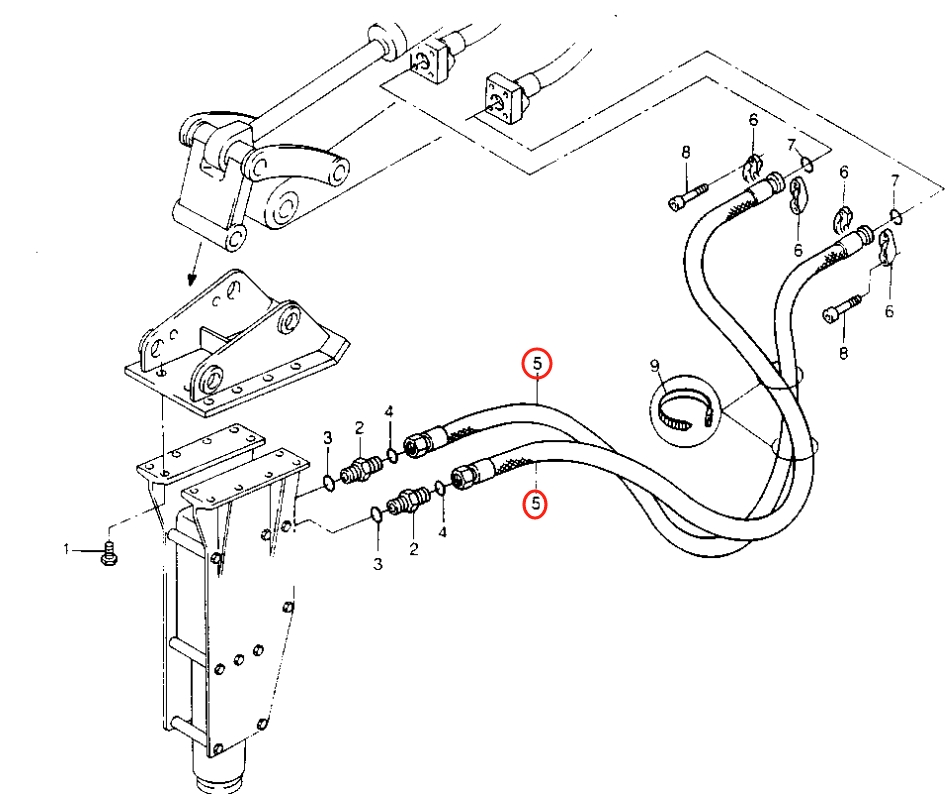

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 8U-6492 before removing the hose.
Repair specifications
- Part number
- 8U-6492
- Diagram pipe number
- 5
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 2,350 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
Same system
Related Hoses
- Length
- 2,350 mm
- Specification
- DN32;2SN-20;12.5Mpa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,200 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 2,350 mm
- Specification
- DN32;2SN-20;12.5Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
For reference only. Confirm the actual hose before fabrication.
