Individual hose record
8U-6217 Hose Repair Specifications
Excavator · Caterpillar · CAT®206B · Attachments – Breaker
Finished length1,200 mm
Locate this hose

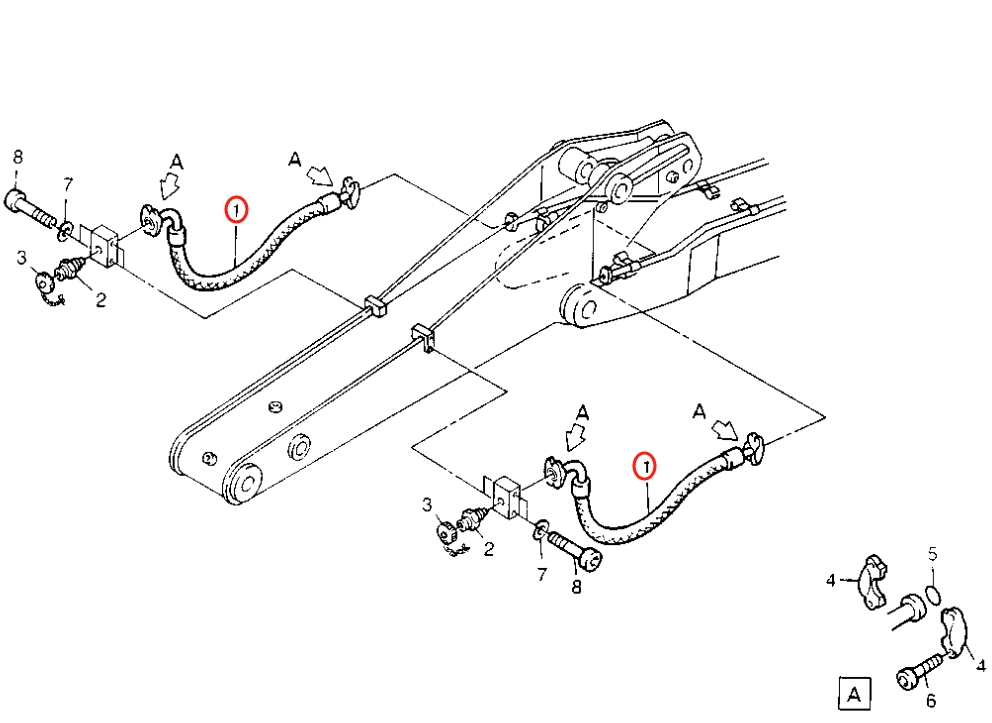

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 8U-6217 before removing the hose.
Repair specifications
- Part number
- 8U-6217
- Diagram pipe number
- 1
- Installation route
- 小臂破碎器截止阀
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 1,200 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
