Individual hose record
8U-9186 Hose Repair Specifications
Excavator · Caterpillar · CAT®206B · Attachments – Breaker
Finished length2,350 mm
Locate this hose

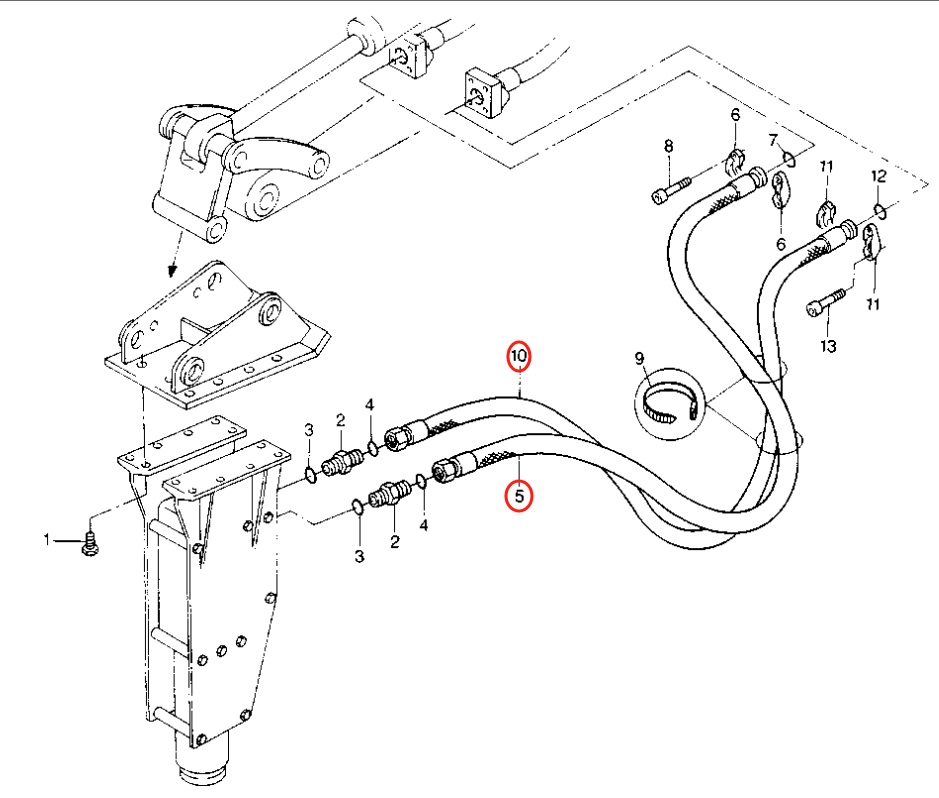

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 8U-9186 before removing the hose.
Repair specifications
- Part number
- 8U-9186
- Diagram pipe number
- 10
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN32;2SN-20;12.5Mpa
- Finished length
- 2,350 mm
- Working pressure
- 12.5 MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
