Individual hose record

4I-3511 Hose Repair Specifications

Excavator · Caterpillar · CAT®318C · Attachments

Finished length3,350 mm

Locate this hose

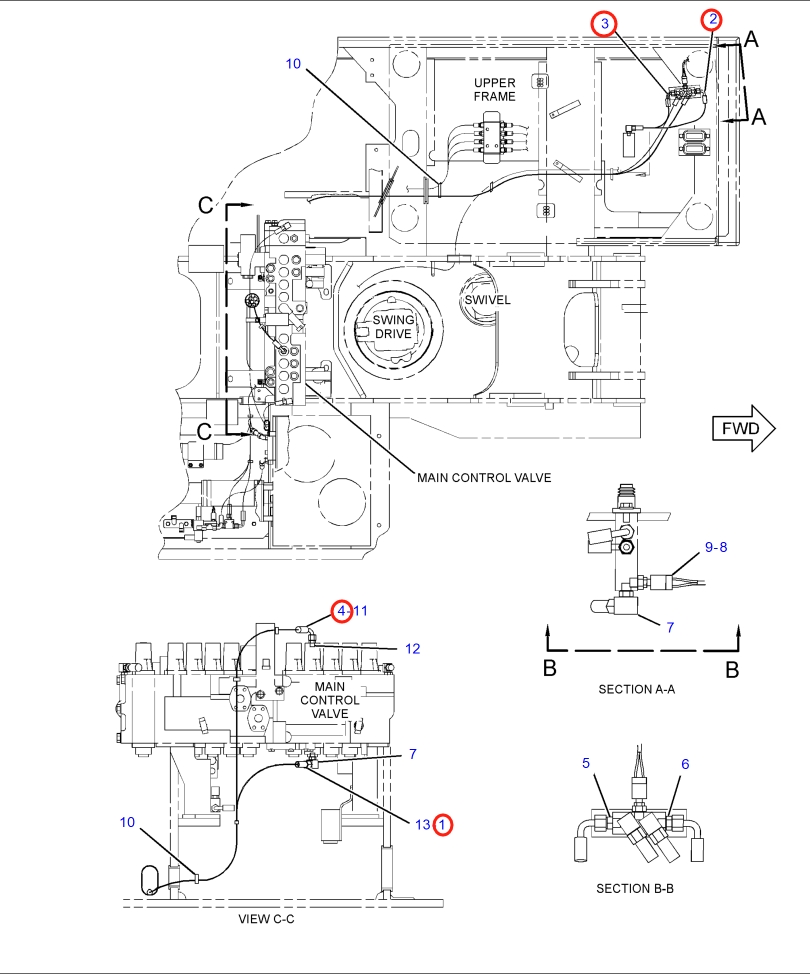

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4I-3511 before removing the hose.

Caterpillar CAT®318C installation diagram showing hydraulic hose 4I-3511 at Pipe No. 1 — **Caterpillar CAT®318C**Part 4I-3511 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4I-3511
Diagram pipe number: 1
Installation route: 左踏板~分配阀下
Hose specification: DN10;-6;10.3Mpa
Finished length: 3,350 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

219-5373

Installation route: 大臂(附加装置)~右过渡阀块(附加装置)

Length: 1,205 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

4I-6003

Installation route: 左踏板~

Length: 2,650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

087-6583

Installation route: 右踏板~分配阀

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

219-5374

Installation route: 大臂(附加装置)~左过渡阀块(附加装置)

Length: 1,260 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 15

240-5718

Installation route: 大臂(附加装置)~左过渡阀块(附加装置)

Length: 1,320 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

4I-0772

Installation route: 右踏板~分配阀

Length: 3,550 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

227-0230

Installation route: 大臂(附加装置)~右过渡阀块(附加装置)

Length: 1,330 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

240-5718

Installation route: 大臂(附加装置)~过渡阀块(附加装置)

Length: 1,320 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
