Individual hose record

423-5384 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Hydraulic Tank

Finished length760 mm

Locate this hose

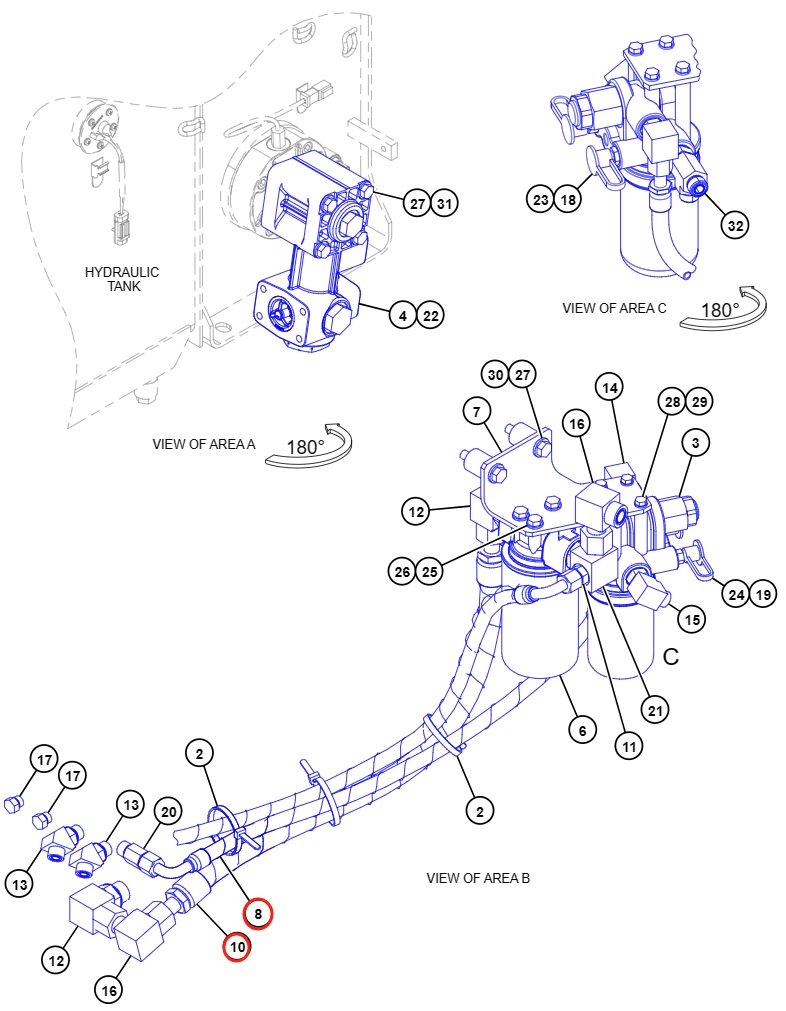

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 423-5384 before removing the hose.

Part number: 423-5384
Diagram pipe number: 10
Installation route: 液压油箱~液压油过滤器
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 760 mm
Working pressure: 8.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: 液压油箱~驾驶室

Length: 2,000 mm
Specification: DN13;1SN-8;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 液压油箱~支撑块(回转马达左后)

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
