Individual hose record
306-3721 Hose Repair Specifications
Excavator · Caterpillar · CAT®315F LCR · Grease Lines
Finished length1,470 mm
Locate this hose

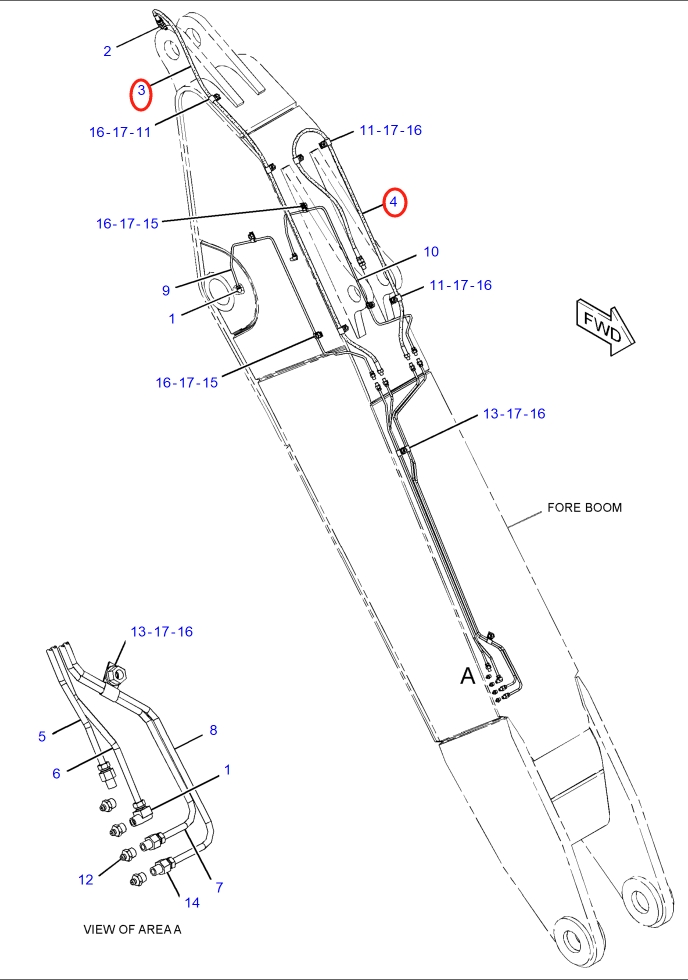

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 306-3721 before removing the hose.
Repair specifications
- Part number
- 306-3721
- Diagram pipe number
- 4
- Installation route
- 小臂黄油管
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 1,470 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,680 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹
- Right fitting
- 美制锥形外螺纹
- Length
- 1,800 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹
- Right fitting
- 美制锥形外螺纹
- Length
- 1,520 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 2,000 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 2,430 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
Diagram Pipe No. 2
121-8659
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
- Length
- 2,000 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
- Length
- 1,900 mm
- Specification
- DN6;-4;10.3Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹
For reference only. Confirm the actual hose before fabrication.
