Individual hose record

576-5162 Hose Repair Specifications

Excavator · Caterpillar · CAT®315 GC · Attachments

Finished length750 mm

Locate this hose

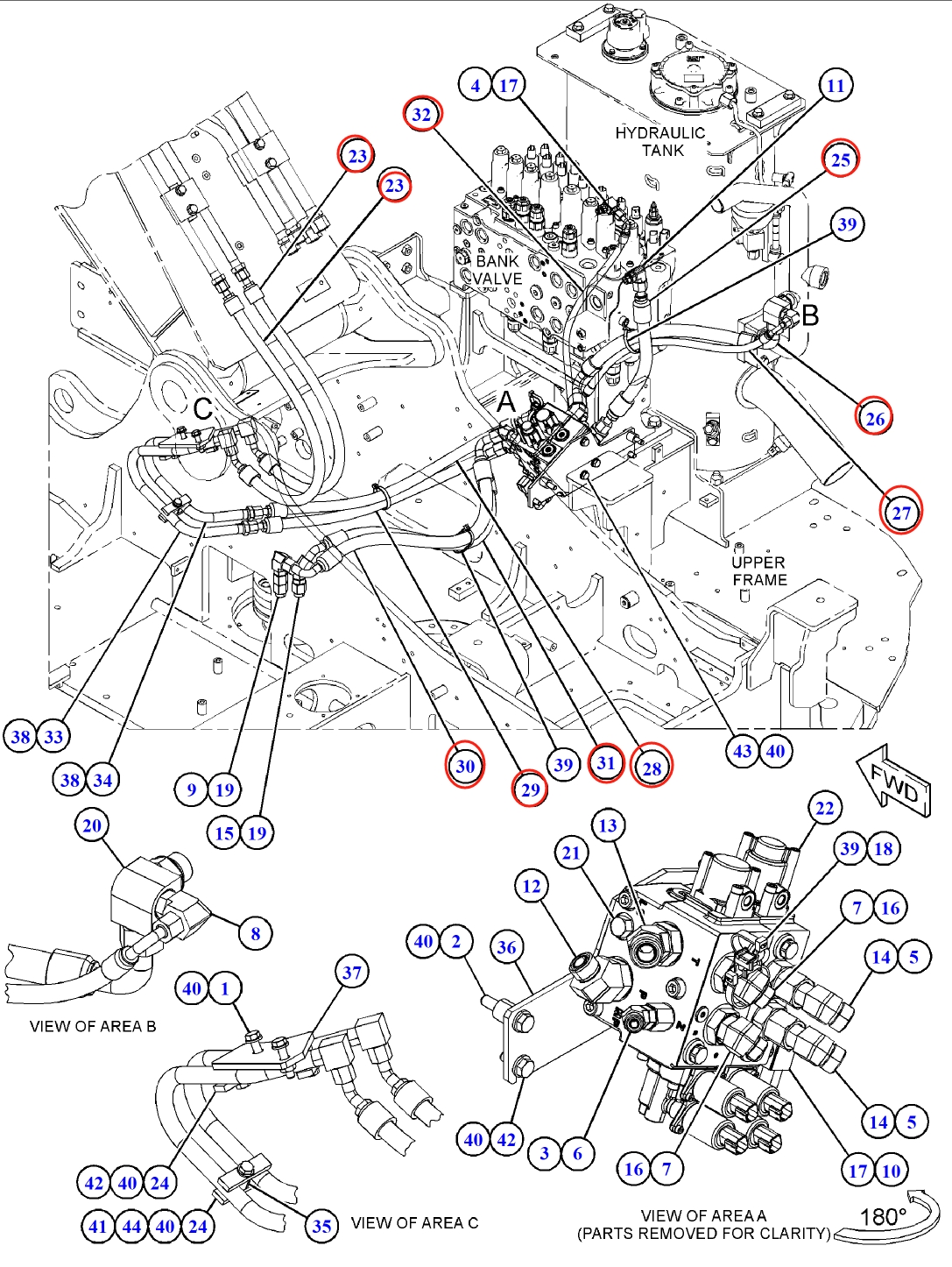

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 576-5162 before removing the hose.

Part number: 576-5162
Diagram pipe number: 29
Installation route: 控制阀(分配阀左后)~铁管(回转接头前)
Hose specification: DN13;4SP-8;28Mpa
Finished length: 750 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 24

Installation route: 控制阀(分配阀右前)~铁管(回转接头前)

Length: 720 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 28

Installation route: 控制阀(分配阀左后)~铁管(回转接头前)

Length: 720 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
