- Length
- 2,030 mm
- Specification
- DN16;4SP-10;28Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
350-0833 Hose Repair Specifications
Excavator · Caterpillar · CAT®318E L · Hydraulic Pump
Finished length410 mm
Locate this hose

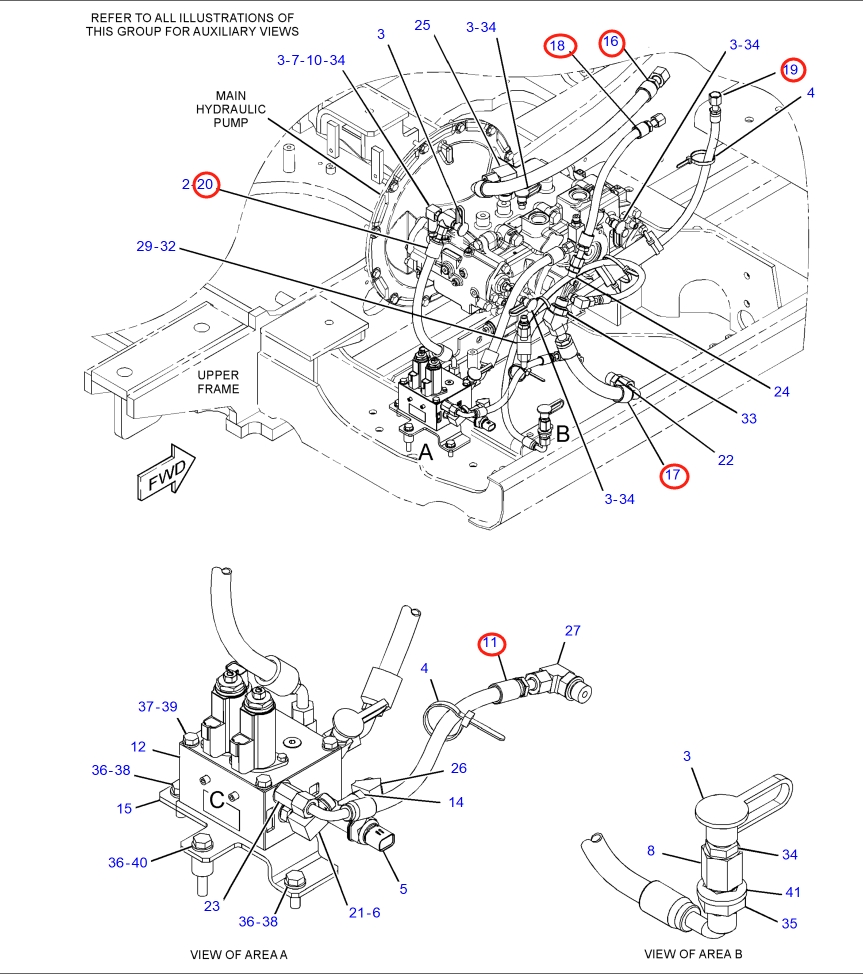

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 350-0833 before removing the hose.
Repair specifications
- Part number
- 350-0833
- Diagram pipe number
- 18
- Installation route
- 液压泵~液压油过滤器
- Hose specification
- DN13;1SN-8;10.4Mpa
- Finished length
- 410 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
