Individual hose record

7I-7117 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B LN · Attachments

Finished length3,250 mm

Locate this hose

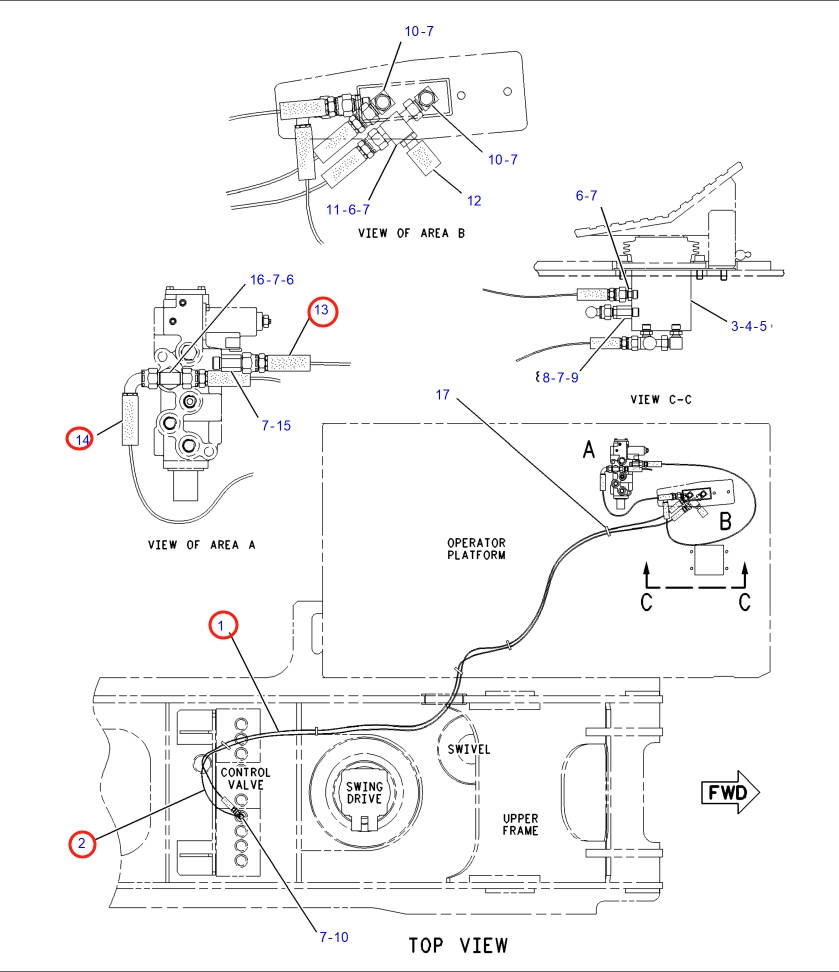

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 7I-7117 before removing the hose.

Caterpillar CAT®317B LN installation diagram showing hydraulic hose 7I-7117 at Pipe No. 1 — **Caterpillar CAT®317B LN**Part 7I-7117 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 7I-7117
Diagram pipe number: 1
Installation route: 踏板~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 3,250 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

6Y-3290

Installation route: 阀块(右大臂油缸下部座销旁)

Length: 1,800 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

206-6301

Installation route: 过渡阀块(回转马达左)~过渡阀块(大臂右侧)

Length: 1,780 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

172-5927

Installation route: 左小臂手动阀~

Length: 1,000 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 5

142-1113

Installation route: 先导阀~手动阀

Length: 370 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 9

205-9859

Installation route: 分流器阀(大臂上)

Length: 1,115 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

206-6299

Installation route: 过渡阀块(回转马达左)~过渡阀块(大臂左侧)

Length: 1,225 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 20

108-7602

Installation route: 过渡阀块(大臂座销下)~回油铁管

Length: 479 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

205-9859

Installation route: 大臂(附加装置)~过渡阀块

Length: 1,115 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
