Individual hose record
107-1591 Hose Repair Specifications
Excavator · Caterpillar · CAT®315-A · Attachments
Finished length3,500 mm
Locate this hose

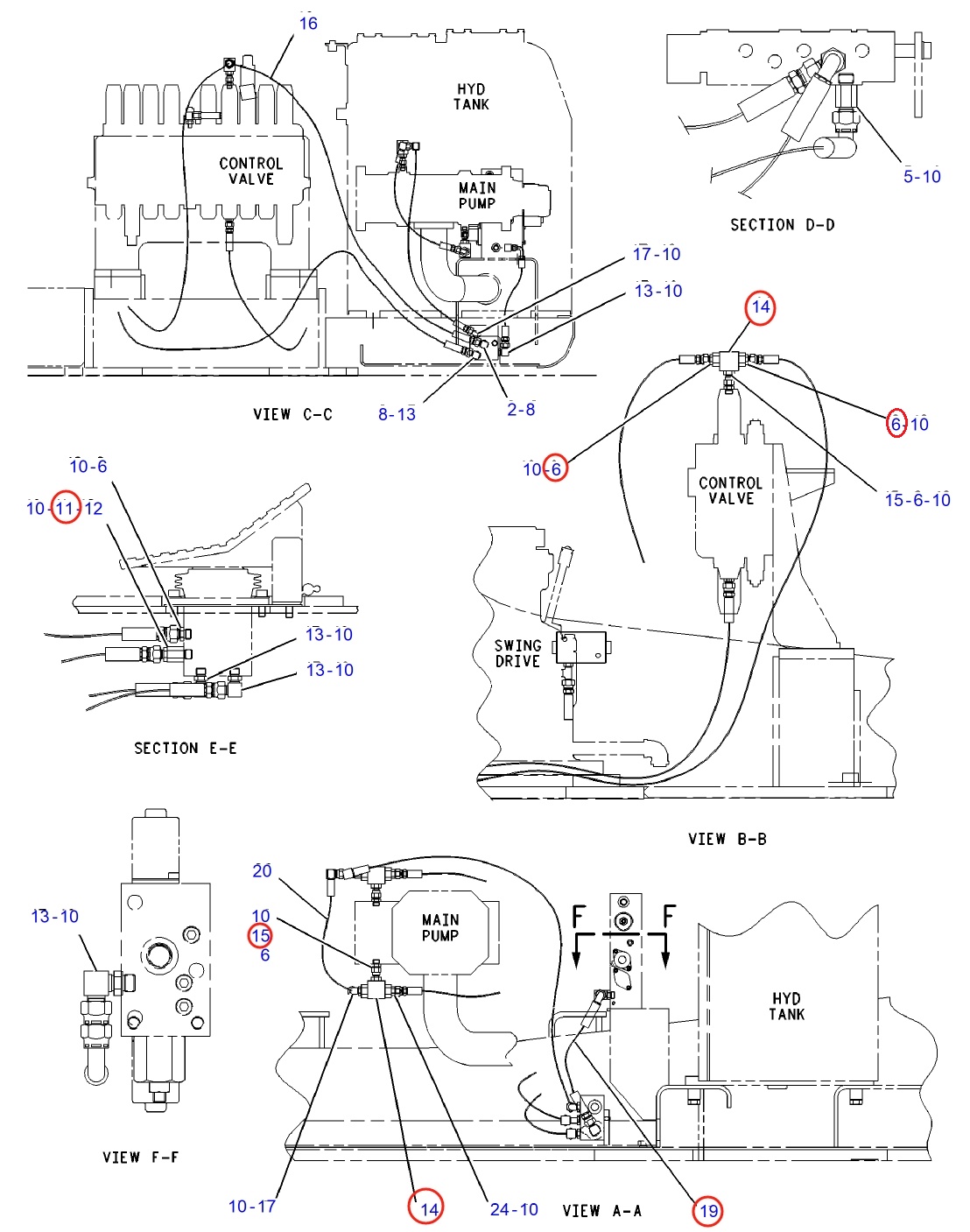

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 107-1591 before removing the hose.
Repair specifications
- Part number
- 107-1591
- Diagram pipe number
- 11
- Installation route
- 右踏板~进回油阀
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 3,500 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,330 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,370 mm
- Specification
- DN19;4SP-12;28Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 2,950 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,100 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 820 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
