Individual hose record
7I-0076 Hose Repair Specifications
Excavator · Caterpillar · CAT®315-A · Attachments
Finished length1,370 mm
Locate this hose

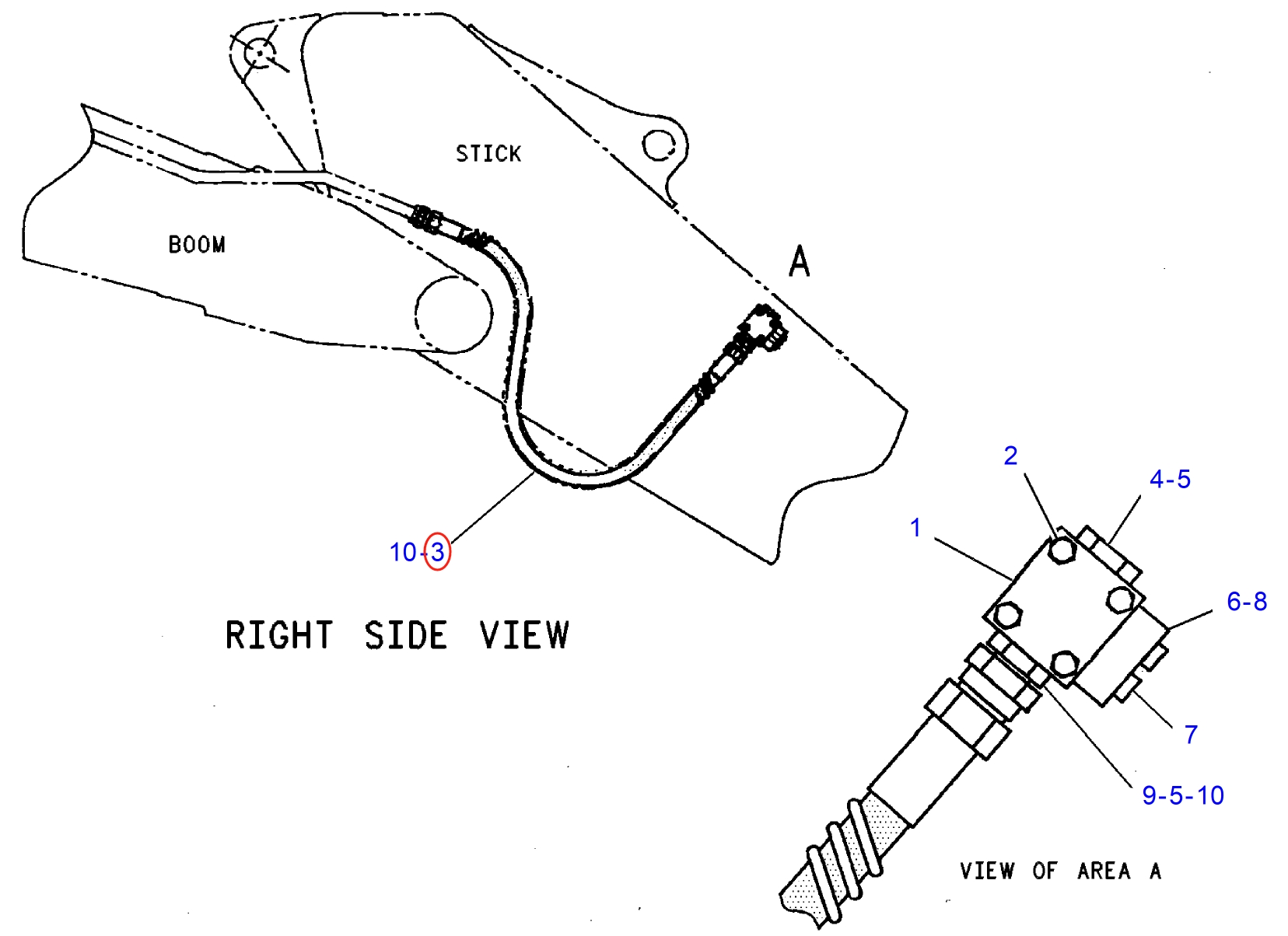

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 7I-0076 before removing the hose.
Repair specifications
- Part number
- 7I-0076
- Diagram pipe number
- 3
- Installation route
- 大臂(附加装置)~小臂(附加装置)
- Hose specification
- DN19;4SP-12;28Mpa
- Finished length
- 1,370 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
