Individual hose record

248-9428 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Hydraulic Tank

Finished length2,000 mm

Locate this hose

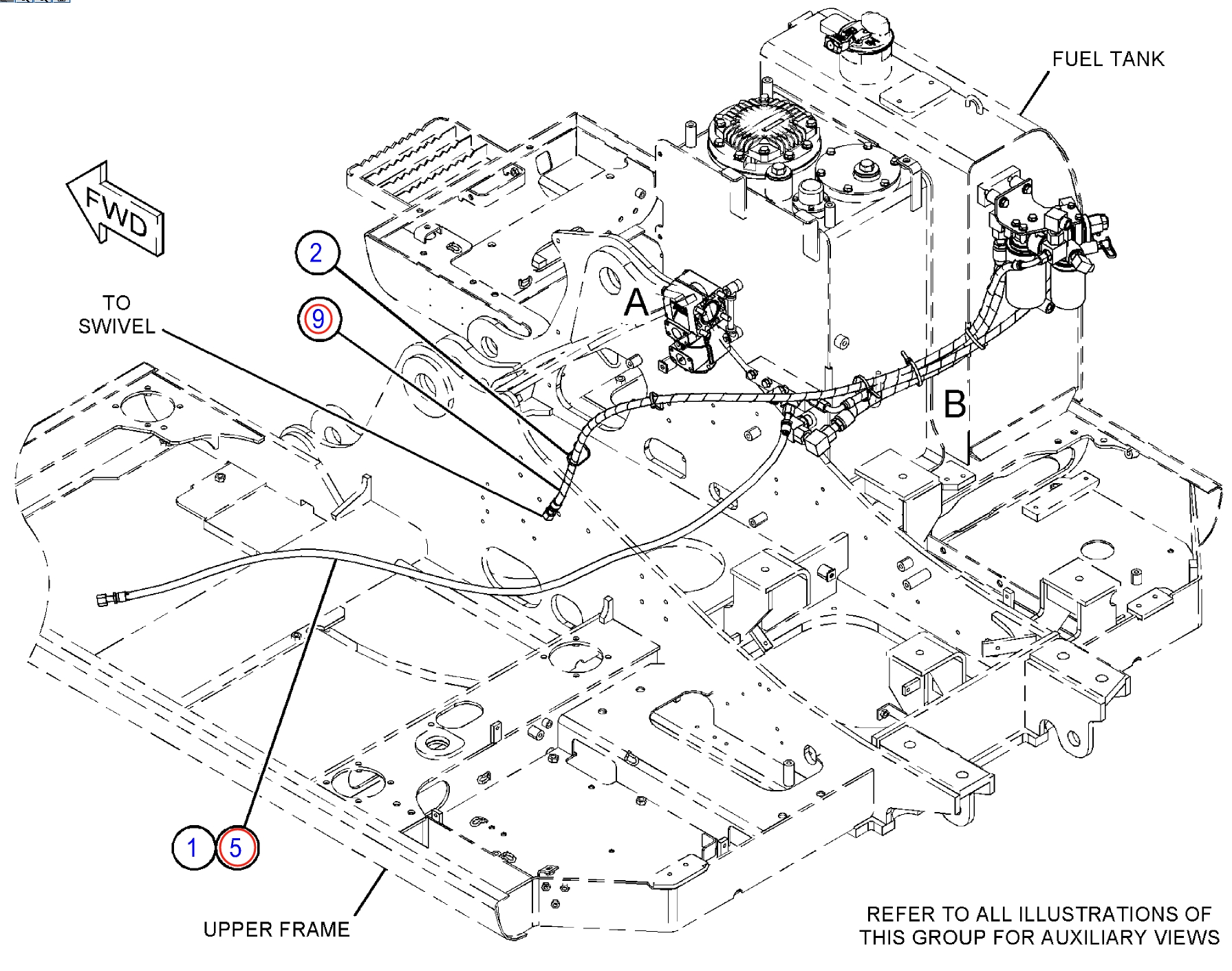

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 248-9428 before removing the hose.

Part number: 248-9428
Diagram pipe number: 5
Installation route: 液压油箱~驾驶室
Hose specification: DN13;1SN-8;10.4Mpa
Finished length: 2,000 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 10

Installation route: 液压油箱~液压油过滤器

Length: 760 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 液压油箱~支撑块(回转马达左后)

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
