Individual hose record
9C-0931 Hose Repair Specifications
Excavator · Caterpillar · CAT®245D · Attachments – Lock Valve
Finished length1,025 mm
Locate this hose

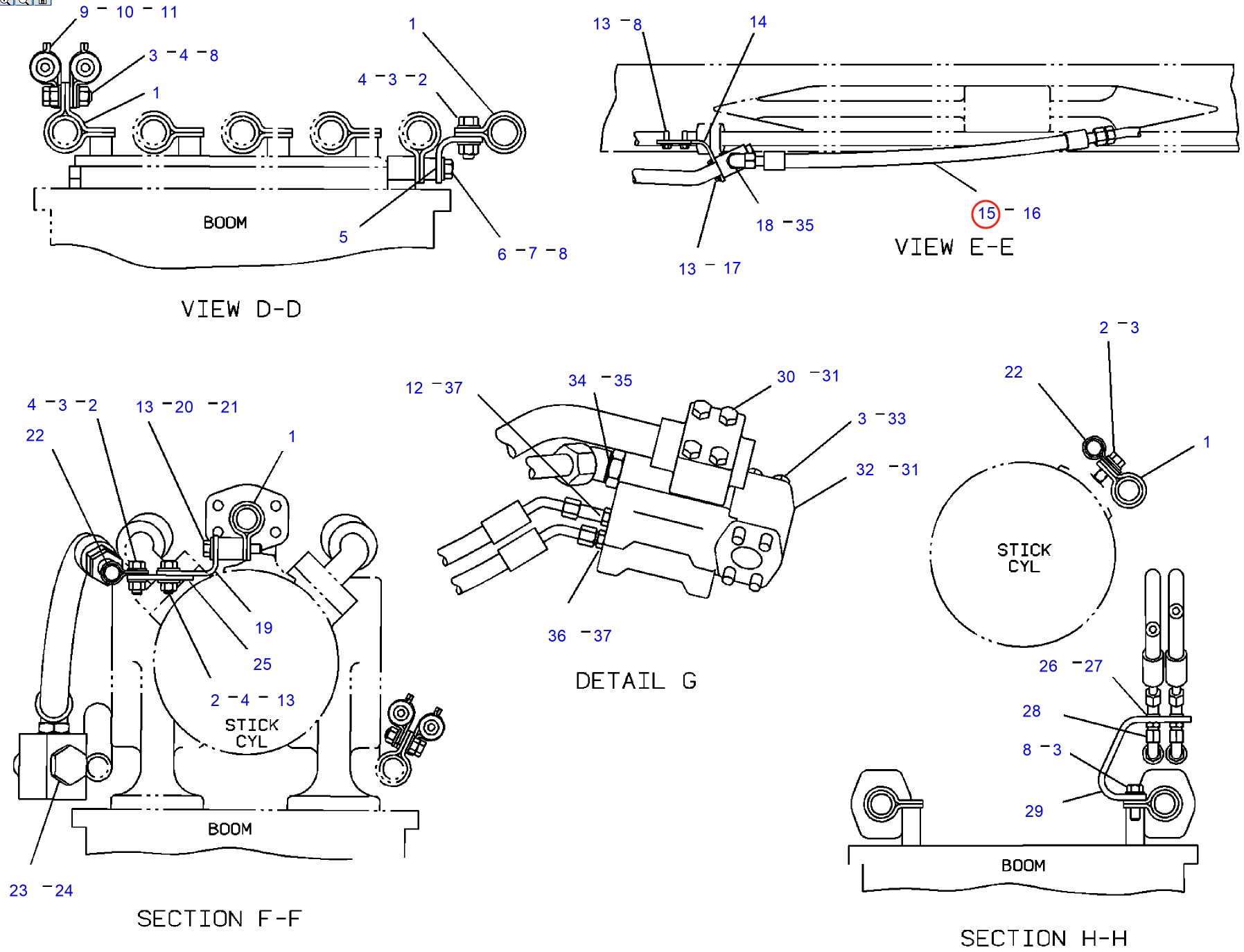

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 9C-0931 before removing the hose.
Repair specifications
- Part number
- 9C-0931
- Diagram pipe number
- 15
- Installation route
- 小臂油缸锁止阀(前段)
- Hose specification
- DN25;4SP-16;28Mpa
- Finished length
- 1,025 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
