8V-8233 Hose Repair Specifications

Excavator · Caterpillar · CAT®245D · Attachments – Lock Valve

Finished length2,210 mm

Locate this hose

Installation diagram — Pipe No. 13

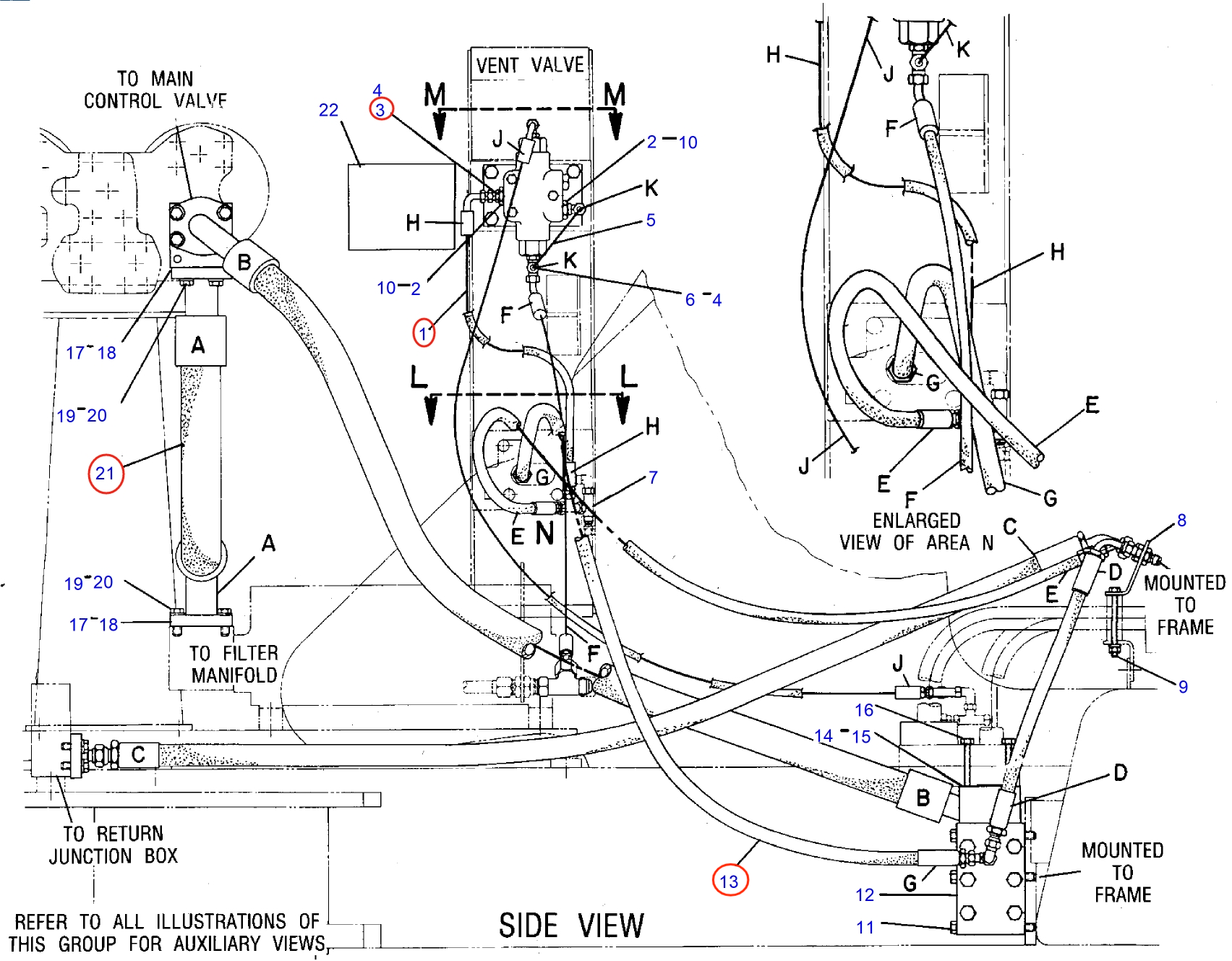

Locate Pipe No. 13 in the diagram, then confirm part number 8V-8233 before removing the hose.

Caterpillar CAT®245D installation diagram showing hydraulic hose 8V-8233 at Pipe No. 13 — Caterpillar CAT®245DPart 8V-8233 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 8V-8233
Diagram pipe number: 13
Installation route: 过渡阀块(分配阀前下)~过渡阀块(大臂下)
Hose specification: DN10;2SN-6;33Mpa
Finished length: 2,210 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 15

9C-0931

Installation route: 小臂油缸锁止阀(前段)

Length: 1,025 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

6S-4825

Installation route: 过渡阀块(分配阀前左)~过渡阀块(大臂下)

Length: 655 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 23

8V-8233

Installation route: 过渡阀块(分配阀前左)~过渡阀块(大臂下)

Length: 2,210 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 35

9C-1956

Installation route: 小臂油缸锁止阀(后段)

Length: 7,500 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
