Individual hose record
9C-1956 Hose Repair Specifications
Excavator · Caterpillar · CAT®245D · Attachments – Lock Valve
Finished length7,500 mm
Locate this hose

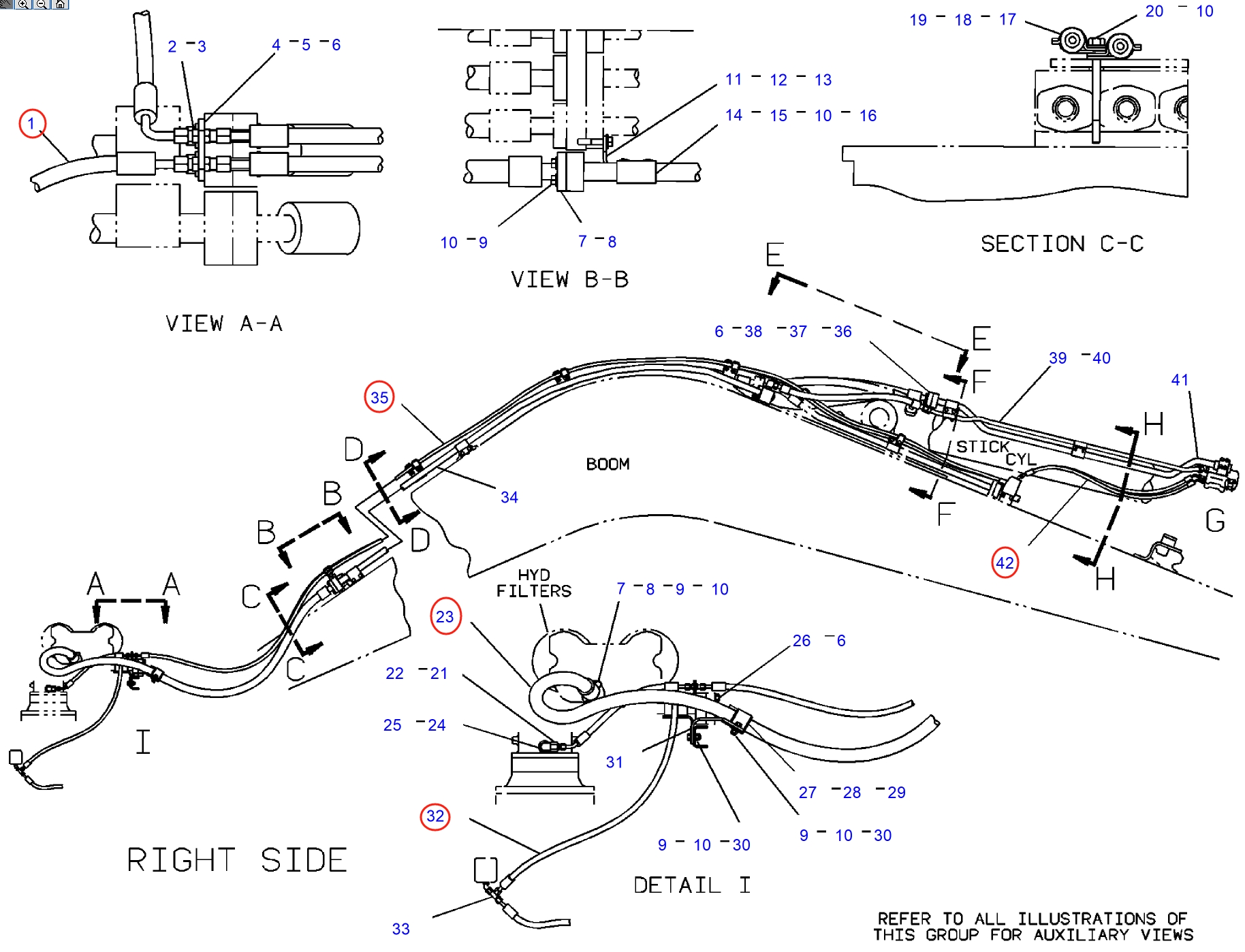

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 9C-1956 before removing the hose.
Repair specifications
- Part number
- 9C-1956
- Diagram pipe number
- 35
- Installation route
- 小臂油缸锁止阀(后段)
- Hose specification
- DN10;4SP-6;28Mpa
- Finished length
- 7,500 mm
- Working pressure
- 28 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 2,210 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 655 mm
- Specification
- DN13;4SP-8;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 2,210 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
