Individual hose record
5W-4887 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments
Finished length800 mm
Locate this hose

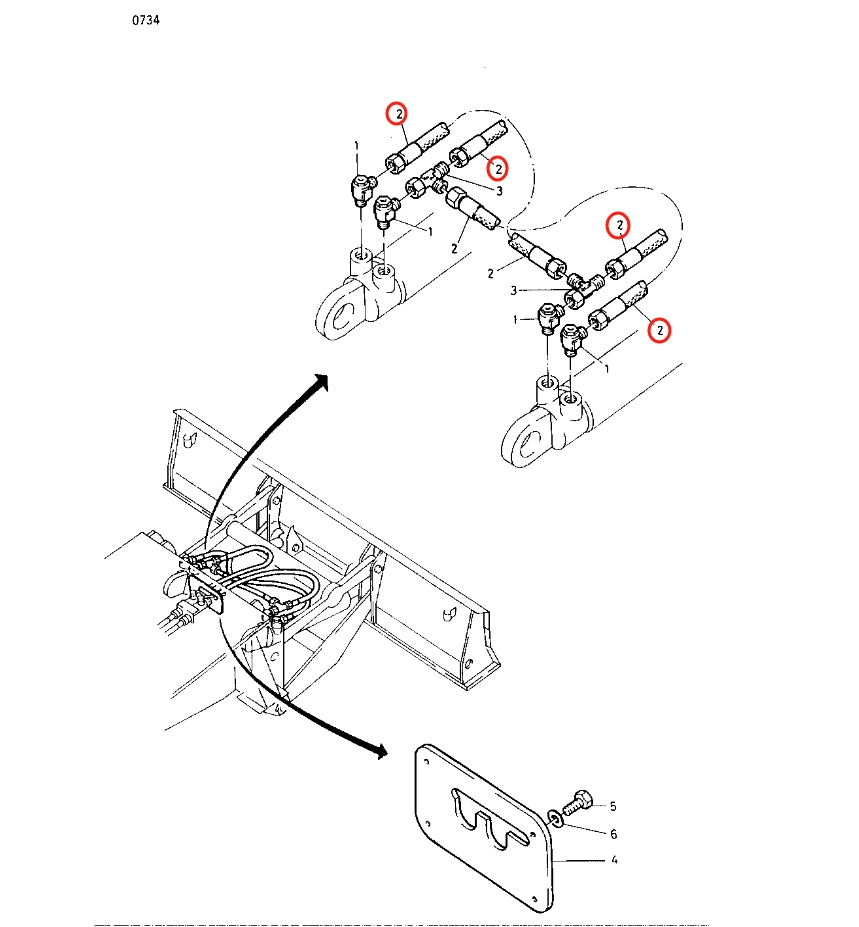

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 5W-4887 before removing the hose.
Repair specifications
- Part number
- 5W-4887
- Diagram pipe number
- 2
- Installation route
- 过渡接头(推土铲)~推土铲油缸
- Hose specification
- DN13;6SH-8;42Mpa
- Finished length
- 800 mm
- Working pressure
- 42 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 4
