Individual hose record
5W-4941 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments
Finished length1,401 mm
Locate this hose

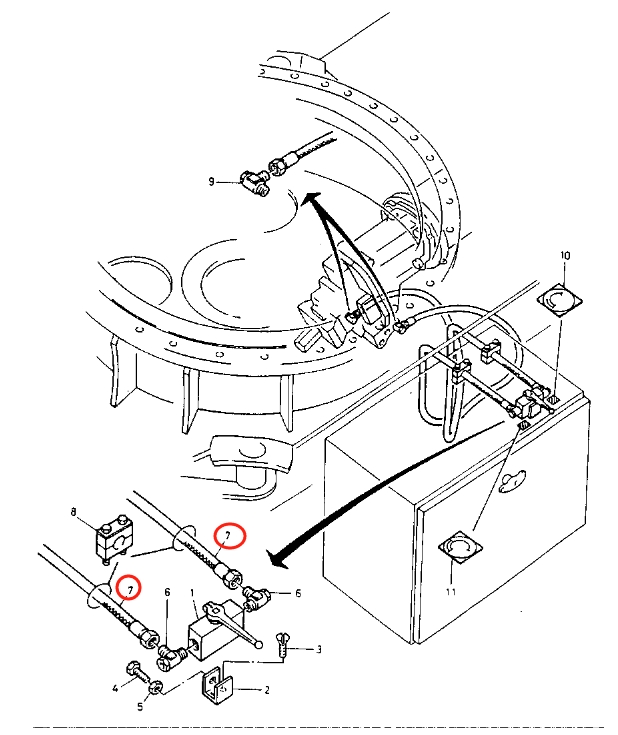

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 5W-4941 before removing the hose.
Repair specifications
- Part number
- 5W-4941
- Diagram pipe number
- 7
- Installation route
- 变速箱~手动阀(液压油箱旁)
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 1,401 mm
- Working pressure
- 40 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 2
