Individual hose record
5W-6859 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments
Finished length1,300 mm
Locate this hose

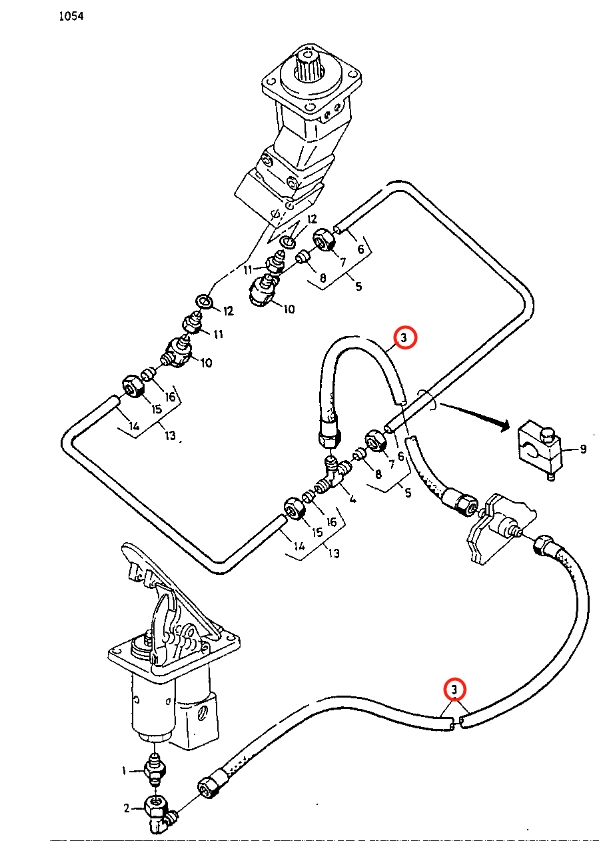

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 5W-6859 before removing the hose.
Repair specifications
- Part number
- 5W-6859
- Diagram pipe number
- 3
- Installation route
- 齿轮泵~过渡接头(连接制动踏板)
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 1,300 mm
- Working pressure
- 40 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 2
