Individual hose record
443-8311 Hose Repair Specifications
Excavator · Caterpillar · CAT®312D L · Attachments – Quick Coupler
Finished length5,980 mm
Locate this hose

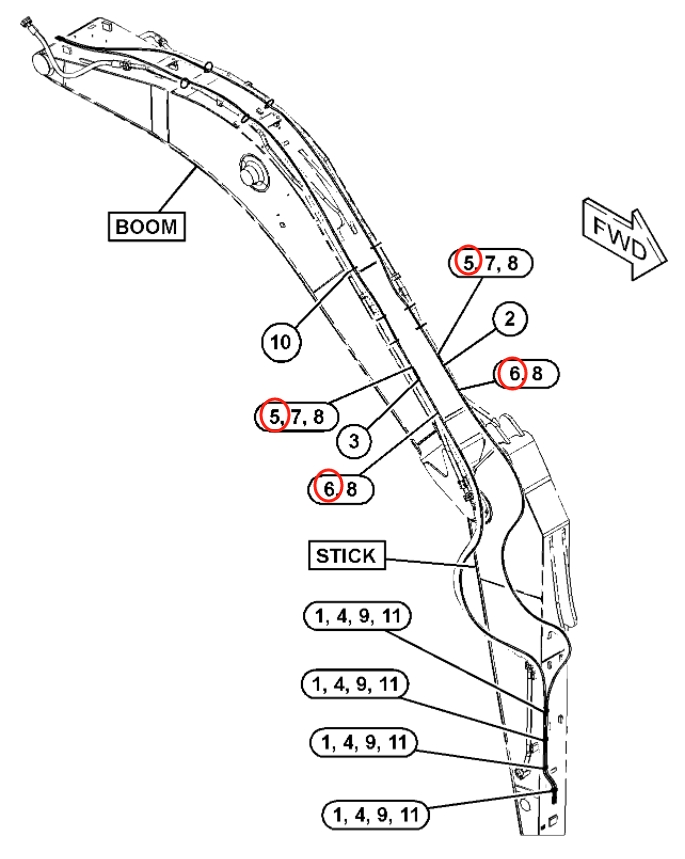

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 443-8311 before removing the hose.
Repair specifications
- Part number
- 443-8311
- Diagram pipe number
- 6
- Installation route
- 小臂快换装置管
- Hose specification
- DN6;2SN-4;40Mpa
- Finished length
- 5,980 mm
- Working pressure
- 40 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
