Individual hose record
156-6691 Hose Repair Specifications
Excavator · Caterpillar · CAT®317B LN · Attachments – Breaker
Finished length990 mm
Locate this hose

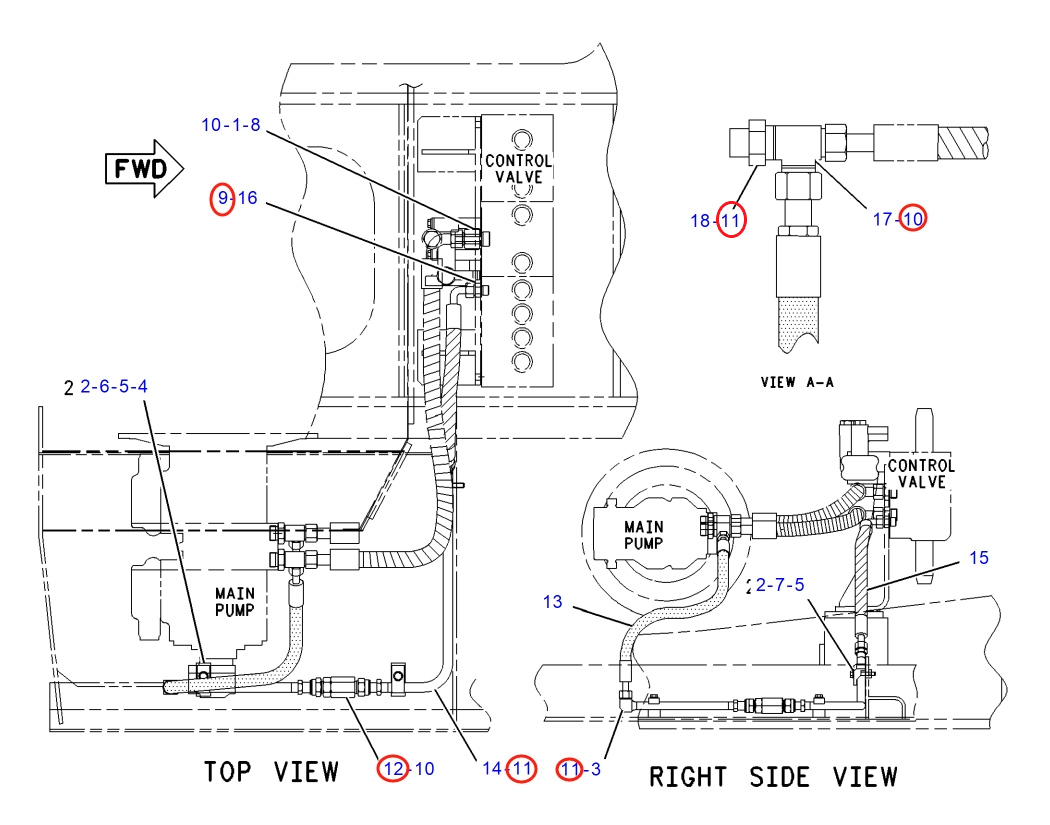

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 156-6691 before removing the hose.
Repair specifications
- Part number
- 156-6691
- Diagram pipe number
- 9
- Installation route
- 大臂(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 990 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
