Individual hose record

4I-6248 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F L · Solenoid Valve

Finished length940 mm

Locate this hose

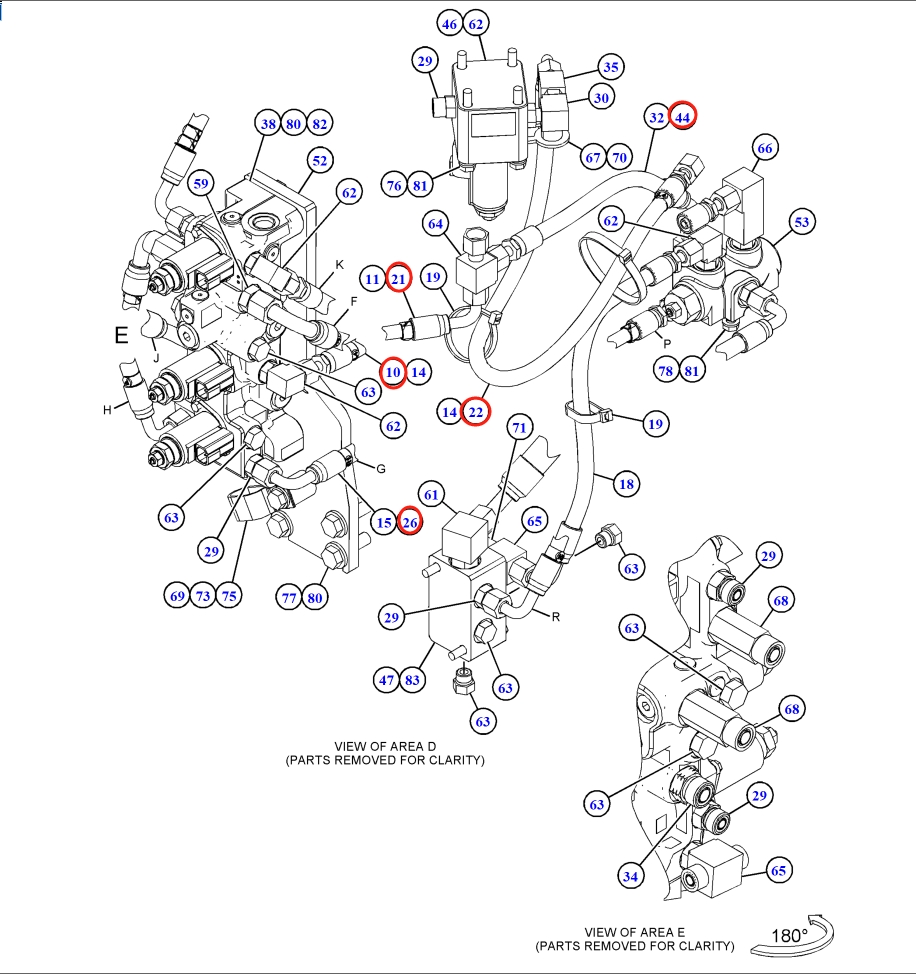

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4I-6248 before removing the hose.

Part number: 4I-6248
Diagram pipe number: 10
Installation route: 蓄能器电磁阀~
Hose specification: DN10;-6;10.3Mpa
Finished length: 940 mm
Working pressure: 10.3 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: 电磁阀(分配阀前)~控制阀(回转接头右)

Length: 720 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 电磁阀(回转马达前)~控制阀(回转马达左)

Length: 700 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 31

Installation route: 电磁阀(分配阀下)~驾驶室

Length: 1,830 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
