Individual hose record

372-9830 Hose Repair Specifications

Excavator · Caterpillar · CAT®312F · Attachments – Breaker

Finished length1,450 mm

Locate this hose

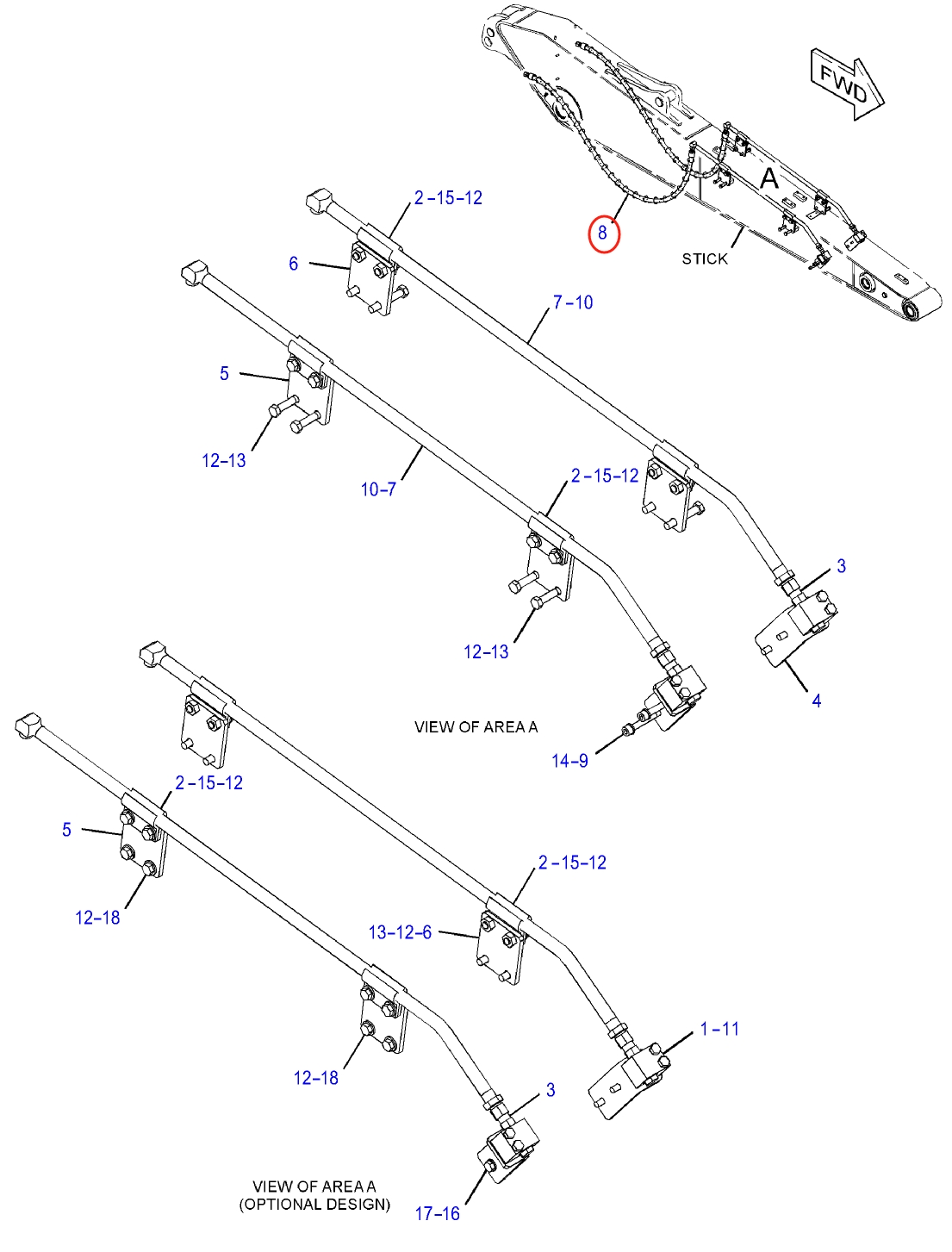

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 372-9830 before removing the hose.

Part number: 372-9830
Diagram pipe number: 8
Installation route: 小臂破碎器截止阀右
Hose specification: DN13;4SP-8;28Mpa
Finished length: 1,450 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 10

Installation route: 回油铁管(分配阀)~破碎器过滤器

Length: 920 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂破碎器截止阀左

Length: 1,550 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 510 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂破碎器截止阀左

Length: 1,980 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 15

Installation route: 分配阀前左~分配阀前右

Length: 920 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 小臂破碎器截止阀右

Length: 1,850 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
