F694040 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1070G Wheeled Harvester

Total length900 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

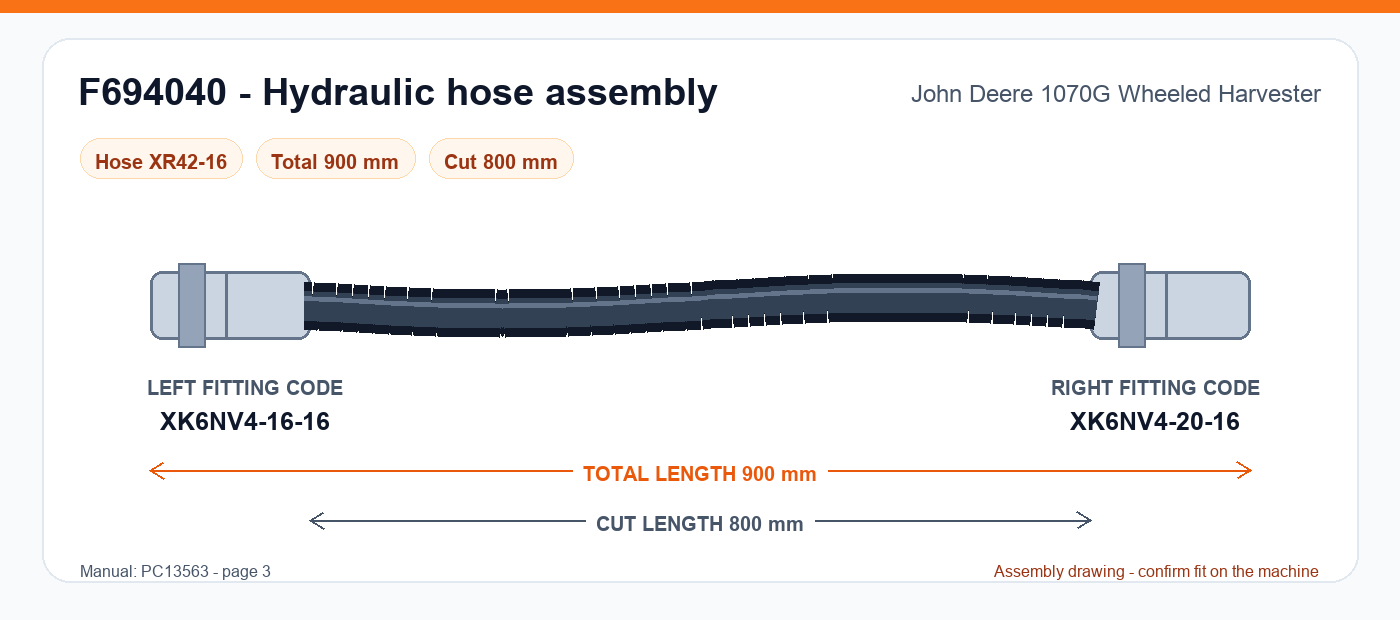

F694040 hydraulic hose assembly drawing for John Deere 1070G Wheeled Harvester - 900 mm total length, left fitting XK6NV4-16-16, right fitting XK6NV4-20-16 — F694040 - 900 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1070G Wheeled Harvester
Part number: F694040
Hose type: XR42-16
Total length: 900 mm
Cut length: 800 mm
Left-end hydraulic fitting code: XK6NV4-16-16Look up this code
Right-end hydraulic fitting code: XK6NV4-20-16Look up this code
Manual reference: PC13563, page 3

Hose assembly details

Part number: F694040
Hose type: XR42-16
Total length: 900 mm
Cut length: 800 mm
Left fitting code: XK6NV4-16-16
Right fitting code: XK6NV4-20-16
Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II
Manual page: 3
