111-6505 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Attachments
Finished length2,300 mm
Locate this hose

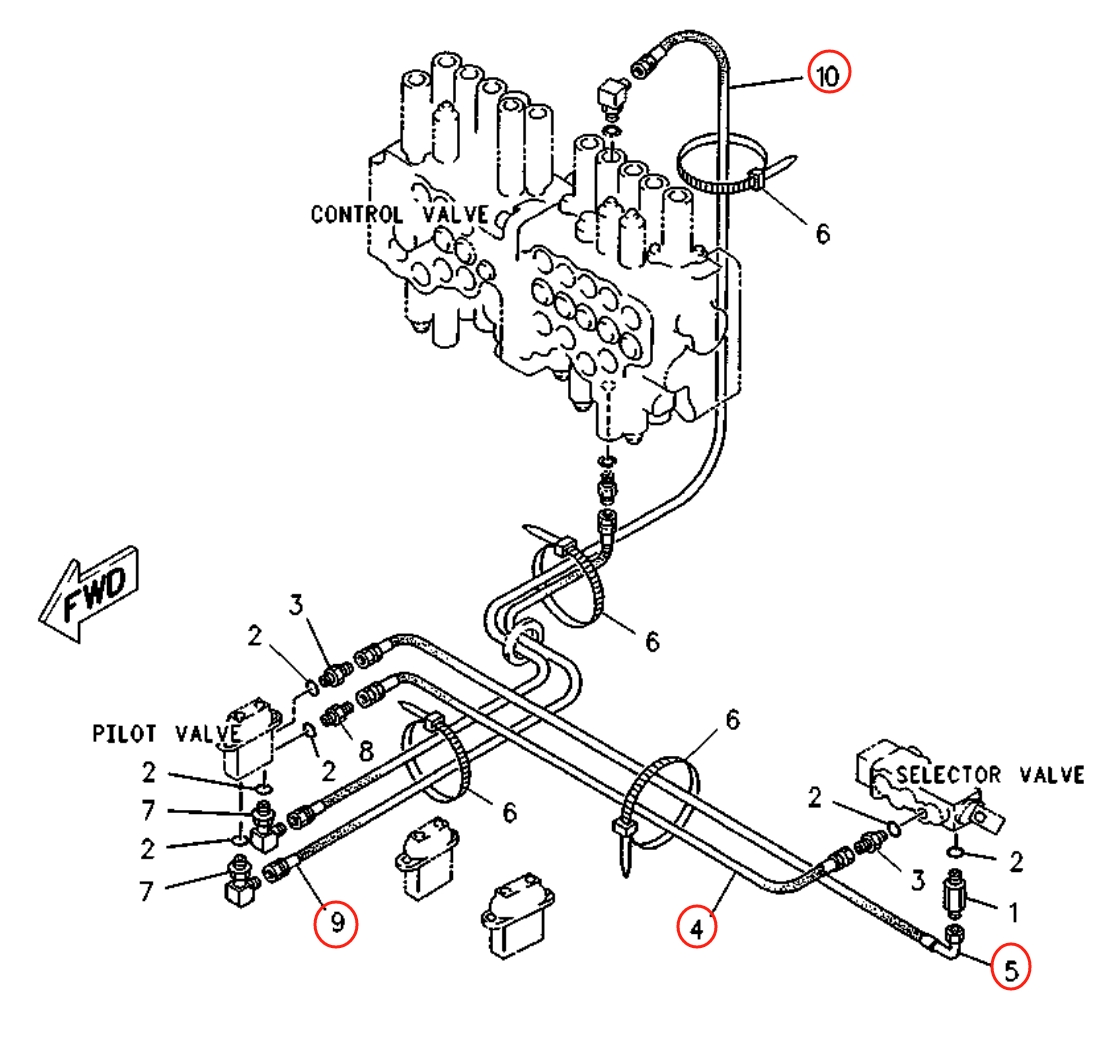

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 111-6505 before removing the hose.
Repair specifications
- Part number
- 111-6505
- Diagram pipe number
- 10
- Installation route
- 右踏板~分配阀上
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 2,300 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
